Introduction

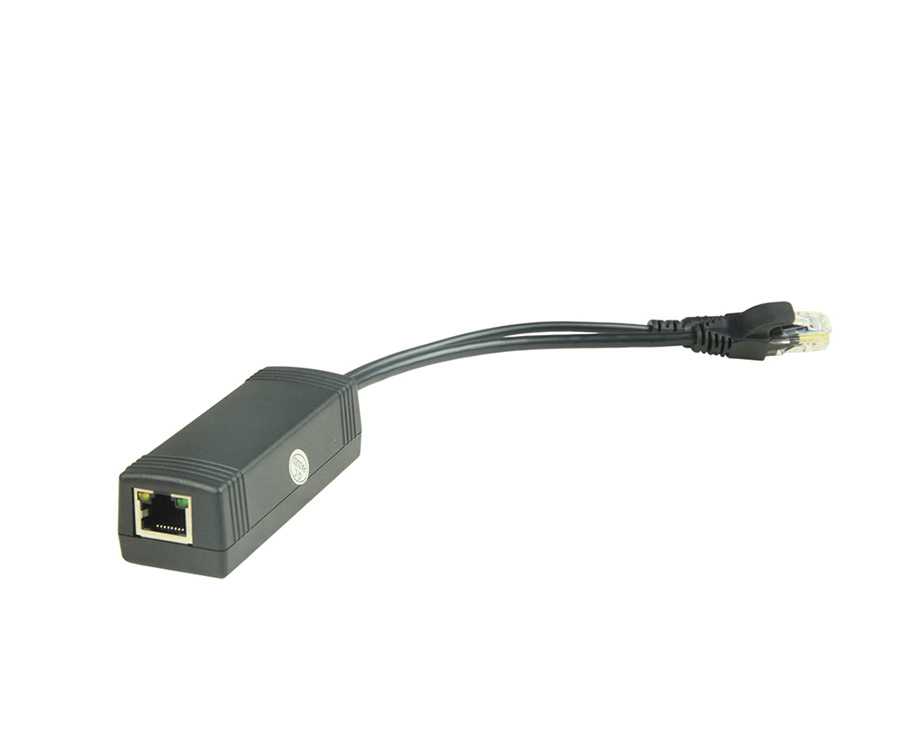

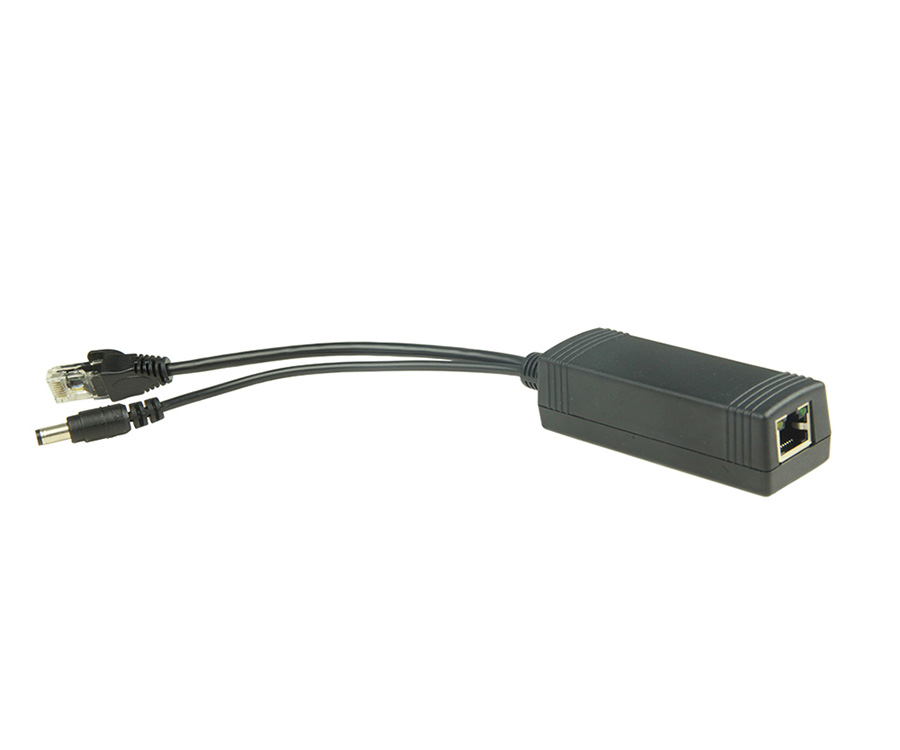

The PS101 series is a 10/100M PD PoE splitter cable with 1*10/100Base-TX RJ45 port and 1*8P male output port and 1*DC power port(5.5*2.1mm).  The invention meets the requirements that various non-PoE network terminals can be externally connected with PoE switches for use, flexibly expands security monitoring and wireless networks without being limited by power line layout, reduces system wiring, improves system stability and safety, and reduces maintenance cost.

The PS101 housing is made of ABS and PC flame retardant plastic material, Meeting the standard of IEEE802.3af/at. Compatible with power supply methods of both End-span (1,2+ 3,6-) and Mid-span (4,5+ 7,8-). With the features of output power at 15W, low ripple, more than 82% high efficiency, Port Isolation Protection: 2KV and Protection for short circuit, over-current & over-temperature. Plug and play, no configuration required, simple and convenient to use.

 Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- );

 Output voltage:12V(Default), 5~24VDC can be customized, with low ripple;

 Input voltage 44-57VDC, rated output power 12W, efficiency greater than 82%;

 Support short circuit, overcurrent and over-temperature protection;

 DC interface with dustproof and waterproof measures;

 Support Lightning protection: 4KV 8/20us; Protection level: IP40;

 Support -20~55°C wide operating temperature range;

 Warrant: 1year;
