1*10/100M RJ45 port+ 1*10/100M male output port+1*(5.5*2.1mm) DC output port;
Support IEEE 802.3af/at Ethernet power standard;
Support 10/100M data transmission;
Output voltage:12V(Default);
Circuit protection to protect the connected device;
Top-quality design, stable and reliable;
1500V high voltage isolation (input stage to output stage);
Support -20~55°C wide operating temperature range;
Warrant: 1year;
REQUEST A QUOTE
Overview
Feature
Specification
Ordering Information
Download
Video
Introduction

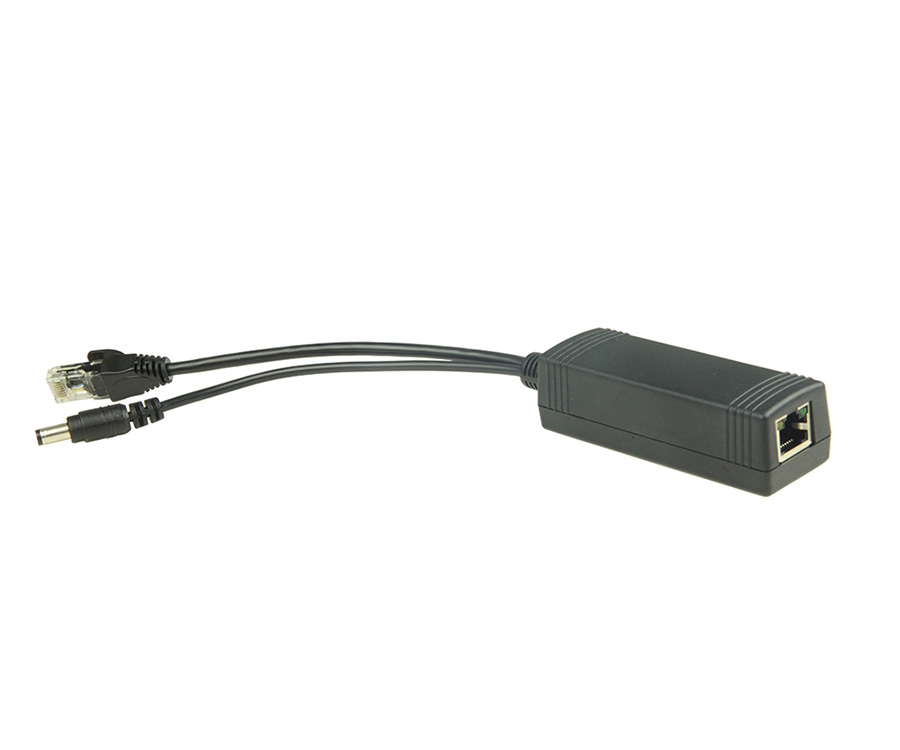

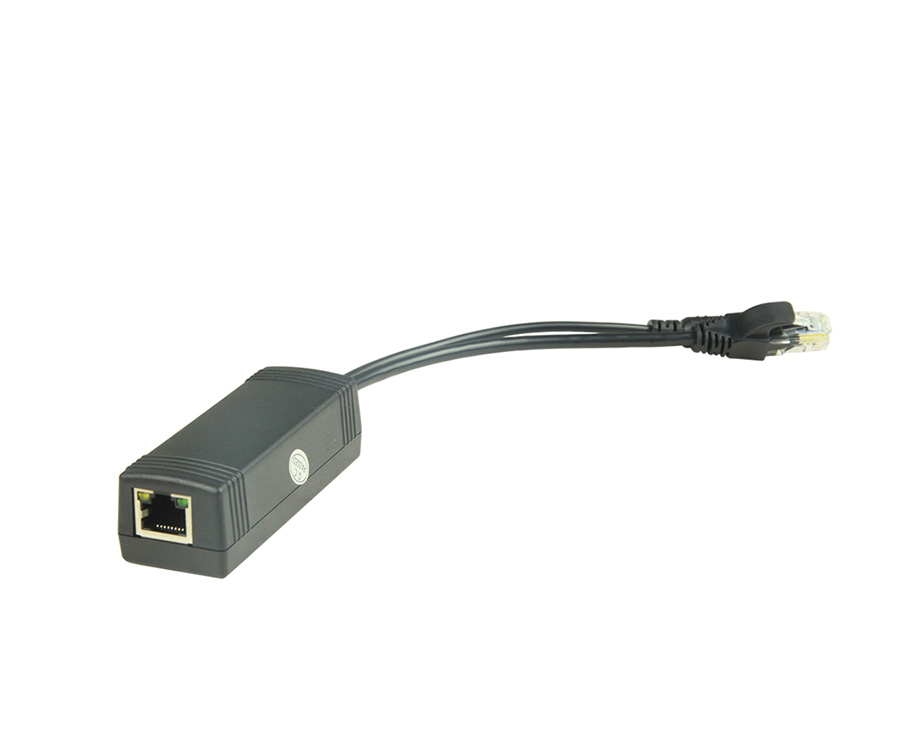

PS101P, a cost-effective and high reliable remote PoE PD device based on standard IEEE802.3af/at, could split the power and data transmitted through cable. It could provide power and data to device without PoE function when connecting with a PoE switch or PSE Injector. The output voltage is 12V, and equipped with PoE power supply device, it could flexibly expand the scale of Security Surveillance & Wireless Network without the limitation of power line layout.
With transformer isolated design for circuit input stage and output stage of the PD5202 power, it strengthens anti-jamming capability and protection for circuit. Also it effectively reduces PoE Switch Abnormal Power Supply Matters caused by common ground problem. Meeting the standard of IEEE802.3af/at. Compatible with power supply methods of both End-span (1,2+ 3,6-) and Mid-span (4,5+ 7,8-). With the features of output power at 13W, low ripple, more than 82% high efficiency, Port Isolation Protection: 1500V and Protection for short circuit, over-current & over-temperature. With 1 to 2 design, it could be working with device that support external PoE, and it also simplifies effectively the project wiring and maintenance.
1*10/100M RJ45 port+ 1*10/100M male output port+1*(5.5*2.1mm) DC output port;
Support IEEE 802.3af/at Ethernet power standard;
Support 10/100M data transmission;
Output voltage:12V(Default);
Circuit protection to protect the connected device;
Top-quality design, stable and reliable;
1500V high voltage isolation (input stage to output stage);
Support -20~55°C wide operating temperature range;
Warrant: 1year;
Interface Characteristics
Power Supply Type
1/2(+),3/6(-);4/5(+),7/8(-) power supply
PoE Voltage Input
44-57V
DC Voltage Output
12V
Connector
1x 10/100M RJ45 input port
1*10/100M male output port
1*(5.5*2.1mm) DC output port
Network Medium
Cat5 (UTP) or more
Protocol
IEEE 802.3 i 10 BASE-T
IEEE 802.3 u 100 BASE-TX
IEEE 802.3 x Flow Control
IEEE 802.3 at Power over Ethernet
Rate
10/100M
LED Status
PoE power input indicator light
Port Protection
Meet the IEC61000-4-2(ESD)±15KV(air), ±8KV (contact);
10/100M non-isolated PD PoE splitter cable, compatible with 1236&4578 dual mode power supply. input voltage: 44-57VDC, output voltage: 12VDC, maximum load power is 15W.
