POE Switches

Home > Products > POE Switches >POE Injector/Splitter/Extender >

  Category List

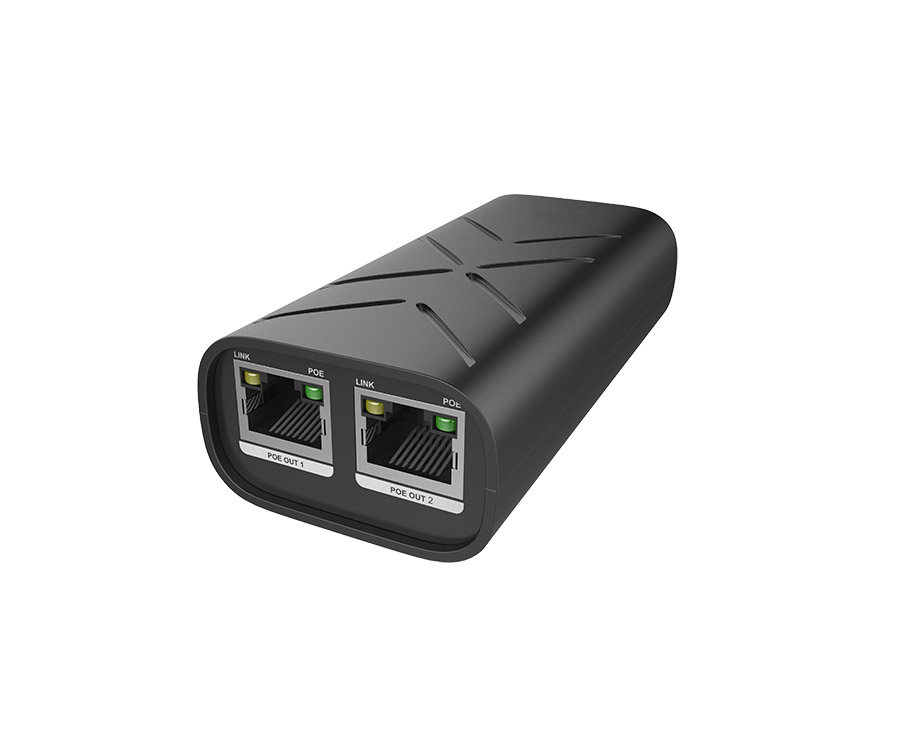

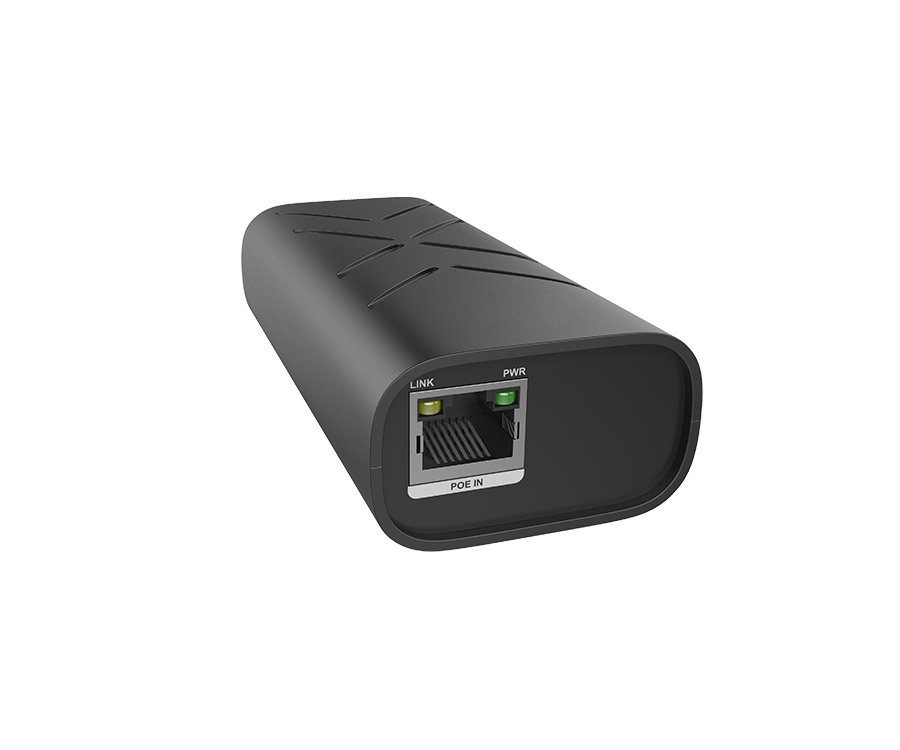

3-Port 10/100M PoE Extender

Model:PE101

Support 3*10/100Base-TX RJ45 ports extend transmission to 200 meters;
Support IEEE 802.3af/at PoE standard, without damaging non-PoE devices;
Support non-blocking wire-speed forwarding;
2* 10/100Base-TX RJ45 ports can support PoE power supply;
Plug and play, no configuration is required, easy to use and maintain;
The user-friendly panel shows the device status through the LED indicator of PWR, Link PoE;
Support -20~55°C wide operating temperature range;
Support CCC,CE, FCC, RoHS standard;
Warranty: 3years;

REQUEST A QUOTE

Introduction

PE101 is an unmanaged PoE extender with 2*10/100M PoE ports and 1*10/100M uplink PD RJ45 port. Port 1-2 can support IEEE802.3af/at PoE standard, single-port PoE power up to 25W. The working power of the PoE extender is taken from the PoE switch and no additional power supply is required. It is installed at the end of the 100 meters network cable to extend the network and POE power supply by 100 meters at full speed. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through a network cable, to meet the network environment that requires high-density PoE power supply, and to reduce the bandwidth to solve the twisted pair POE transmission within 200 meters. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to form a cost-effective network.


Unmanaged mode, plug and play, no configuration, easy to use.
