Introduction

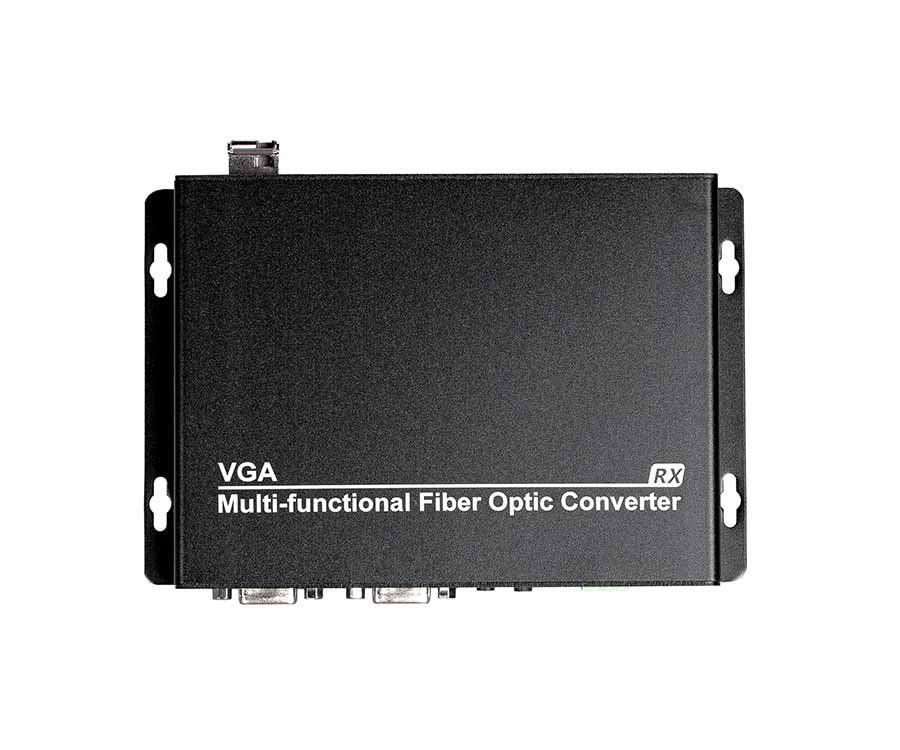

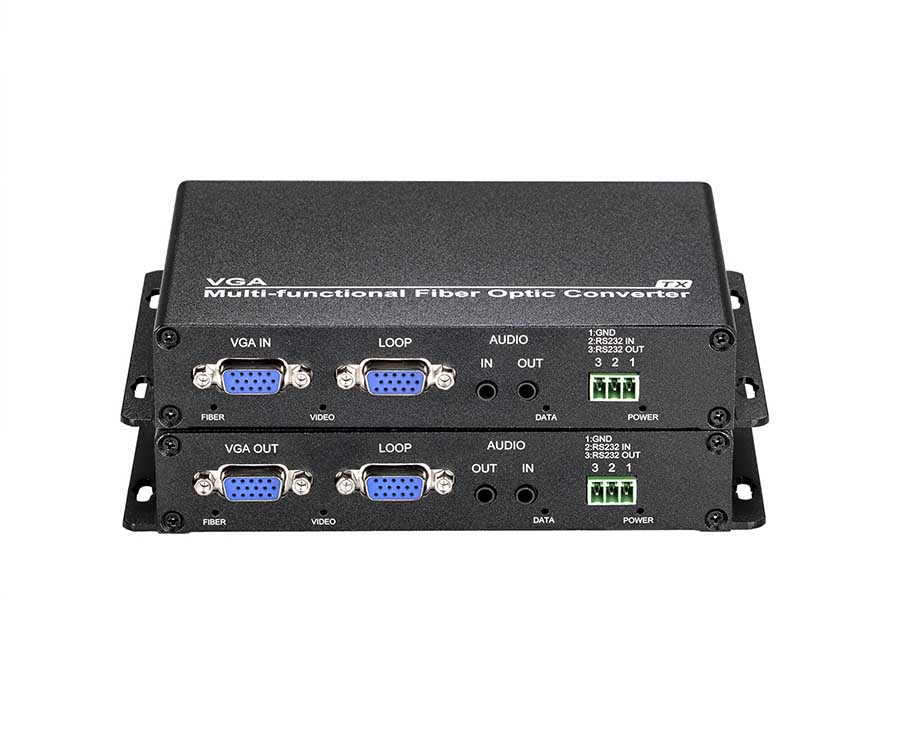

UPCOM VGA multi-function fiber optical converter can transmit one VGA video with local video loop,1 channel keyboard and mouse,1 channel bidirectional 3.5mm independent audio,1 channel bidirectional RS232 data,1 channel reverse IR,1 channel reverse contact closure.SFP optical module design,more flexible and practical on site,users can upgrade and maintenance by themselves.The device support the highest resolution of 1920*1080P/60Hz and downward compatibility,high image definition,long-distance transmission without distortion,especially for high demand environment transmission.For example,image quality requirements,delay requirements,anti-interference requirements,compatibility,stability, reliability, consistency and other scenarios.
VGA0111-10G-MK VGA fiber optical converter has been in commercial operation for a long time, which proves that the product performance is stable,and there is no compatibility problem with the manufacturer of the major brand signal terminal and display terminal,simple to install and easy to maintain, suitable for large-scale commercial operation.Ideal for high-performance computer remote interactive operations,such as radio and television video recording,medical system,projection fusion,stage rental,video conference,multimedia teaching,municipal/military command applications.Lossless images, real-time high-bandwidth fiber optic transmission gives remote customers the experience of operating locally.
Features
Support resolution 1920*1080P/60Hz;
Support automatic phase detection (APD);
Support automatic position calibration (APC);
Support automatic gain calibration (AGC);
Support for audio emulation (AFE);
Support Time-base corrector (TBC);
Support Chroma sampling : 4:4:4;
Non-compression;
Delay<1ms;
Single-mode single-fiber,with a transmission distance of 20KM;
Support VGA video with local loop out;
Support 1 channel bidirectional 3.5 independent audio;
Support 1 channel KVM (keyboard and mouse);
Support 1 channel bidirectional RS232 (RS485) serial port data ( optional );
Support 1 channel reverse contact closure;
Support 1 channel reverse IR infrared function;
Support hot swap signal, plug and play, no setting required;
Support power supply DC12V;
Wide range of operational temperature (-20°C ~75°C)；
Warranty: 3 years;
Specification
Fiber Optical |
Wavelength | 1310-1550nm |
Rate | 10Gbps |
Tx power | ＞-5db |
Rx sensitivity | ＞-14db |
Fiber connector | LC |
Video |
Video specifications | The RGB bands are synchronized with H and V alone |
Maximum pixel clock | 148.5MHZ |
Resolution | 480i/p, 576i/p |
720p25/30/50/60 |
1080i50/60 |
1080p24/25/30/50/60 |
Effective cable length | 10M |
Physical interface | HD-15 |
KVM(USB) index |
Version | 1.1 |
Tx physical interface | USB female type B |
Rx physical interface | USB female type A |
Audio index |
Sampling frequency | 48K |
Sampling depth | 24bit |
Dynamic bandwidth | 96db |
Total harmonic distortion | -88db |
Signal to noise ratio（SNR） | 96db |
Audio input/output impedance | 600Ω |
Signal level | VPP 3.5V |
Physical interface | 3.5mm stereo audio socket |
Signal type | Analog stereo channel |
IR index |
Infrared interface | Standard 3.5mm interface |
Infrared frequency | Standard with 20-60KHz |
Signal type | Digit signal |
Infrared transmission direction | Reverse transmission |
RS232 data index (3-wire system,full duplex) standard |
Baud rate | 256000Hz downward compatibility |
Data bits | 8 digits |
Physical interface | 3-pin phoenix terminal |
RS485 data index (2-wire system,half duplex) |
Error rate | <10^-9 |
Bit rate | 0-400Kbps |
Physical interface | 3-pin phoenix terminal |
Contact closure index |
Input electrical parameters | Dry node, not charged (short or disconnected) |
Output electrical parameters | Dry node, not charged (short or disconnected) |
Output relay maximum switching voltage | 240VAC/30VDC |
Output relay maximum switching current | 120VAC/0.5A ,240VAC/0.25A ,30VDC/1A ,6VDC/5A |
Mechanical durability of output relay | 100,000,000times |
Maximum output power of relay | 30W |
Physical interface | 2-pin phoenix terminal (transmitter) Switch button (receiver) |
Other |
Operating temperature | -20°C ~ +75°C |
Storage temperature | -40°C ~ +85°C |
Power supply | 12V1A |
Power dissipation | ＜1.5W |
Case | Aluminium alloy |
Product net weight | 0.7kg/pair |
Product weight | 1.05kg/pair |
Packing size | 167*114*28mm |
Package size | 340*252*54mm |
Relative Humidity | 0%~95% ( no condensation) |
MTBF | 100,000 hours |
Warranty | 3 Years |
