Introduction

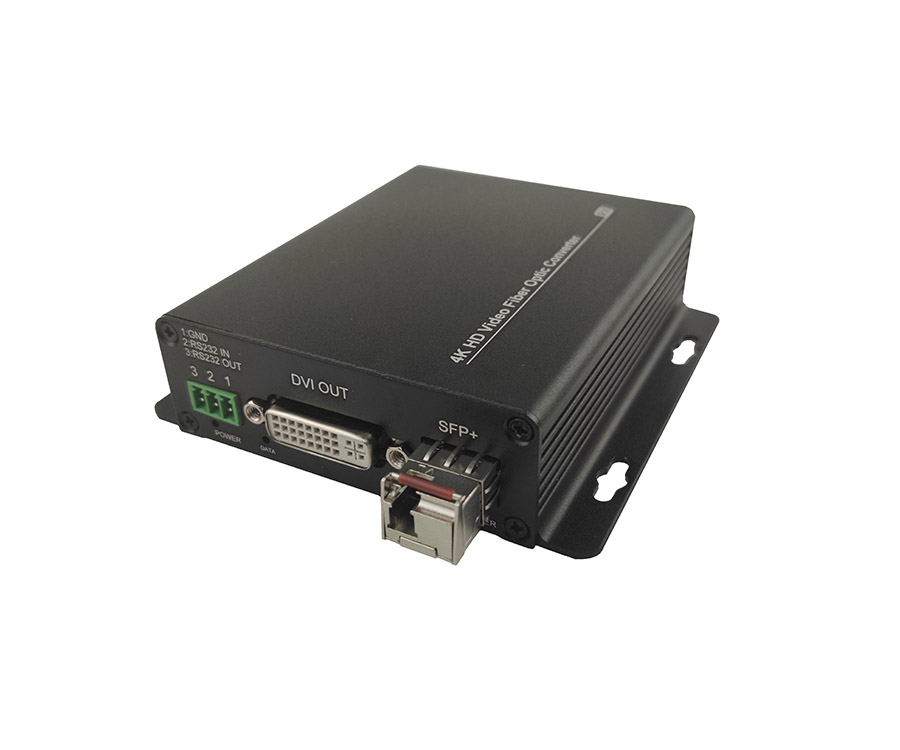

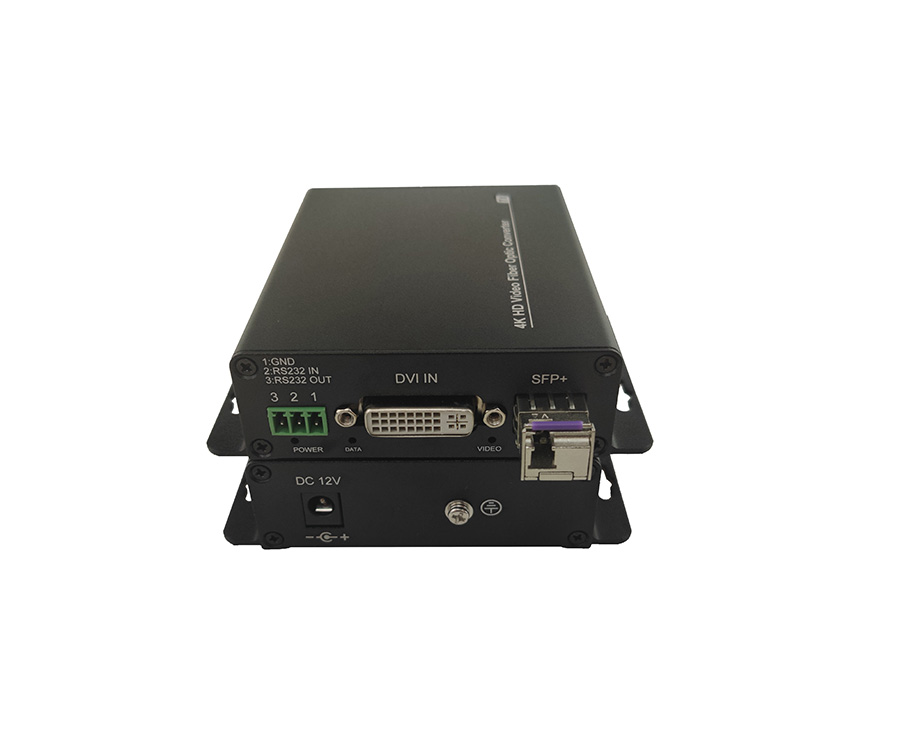

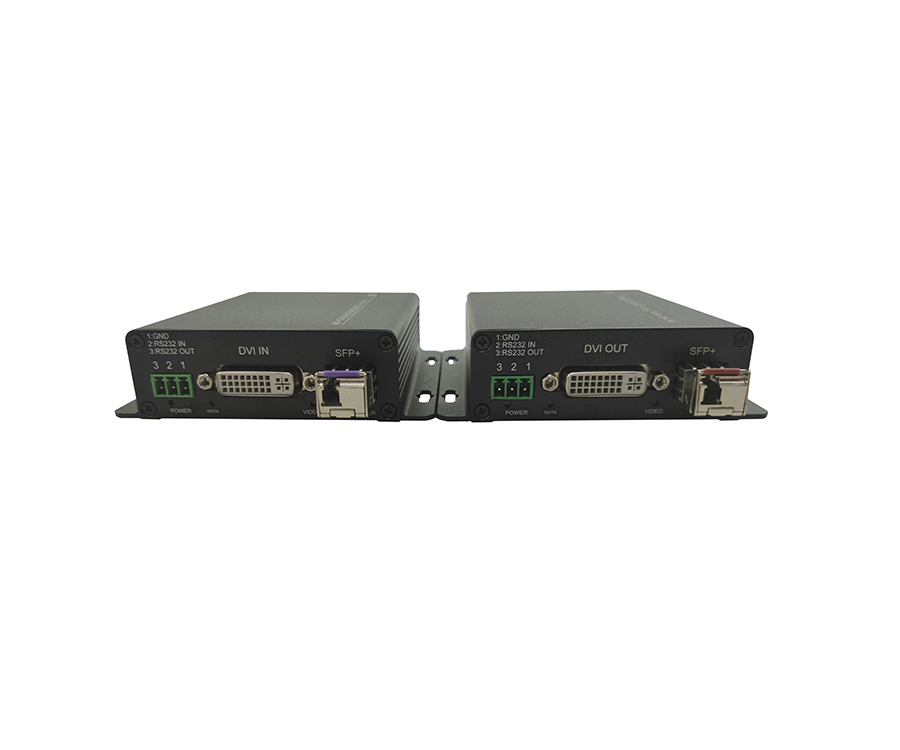

UPCOM DVI video to fiber optical converter DVI0101-10G is composed of the transmitter and the receiver. The video, audio and data output from the computer host (HD video signal source, HD DVD/DVR and other devices) are extended to the remote user through one core optical fiber, and the image and sound of the computer host are played in real time at the remote end.
DVI0101-10G DVI video fiber optical converter support 1920*1200@60Hz resolution and downward compatibility, 1 channel bidirectional full-duplex RS232 (half-duplex RS485 optional), 1 channel reverse contact closure function (optional), multi-mode transmission distance 1KM, single-mode transmission 10KM, plug and play, no setting required, Single-fiber or dual-fiber (optional).
Features
DVI video support maximum resolution 1920*1200@60Hz and downward compatibility;
Support international standard DVI1.0 HDCP1.4;
EDID transparent transmission mode;
Support RGB&YCBCR4:4:4 YUV4:4:4 /4:2:2/4:2:0;
Support DDC/CEC/HPD signal;
Support 1 channel bidirectional full-duplex RS232 (half-duplex RS485 optional);
Support 1 channel reverse contact closure function (optional);
Support Single-fiber or dual-fiber (optional) ;
Support multi-mode transmission distance 1KM, single-mode transmission 10KM;
Support hot swap signal, plug and play, no setting required;
Delay < 2 ms;
Support power supply DC12V;
Wide range of operational temperature (-20°C ~75°C)；
Warranty: 3 years;
Specification
Fiber Optical |
Wavelength | 1310-1550nm |
Rate | 10Gbps |
Tx power | ＞-5db |
Rx sensitivity | ＞-14db |
Fiber connector | LC |
Video |
Video bandwidth | 10GHz Gbps |
Resolution | 1920*1200@60Hz downward compatibility |
Maximum pixel clock | 297MHZ |
Effective cable length | 10M |
Physical interface | DVI female |
RS232 data index（3-wire system,full duplex）standard |
Baud rate | 256000Hz downward compatibility |
Data bits | 8 digits |
Physical interface | 3-pin phoenix terminal |
RS485 data index（2-wire system,half duplex) |
Error rate | <10^-9 |
Bit rate | 0-400Kbps |
Physical interface | 3-pin phoenix terminal |
Other |
Operating temperature | -20°C ~ +75°C |
Storage temperature | -40°C ~ +85°C |
Power supply | 12V1A |
Power dissipation | ＜1.5W |
Case | Aluminium alloy |
Product net weight | 0.2kg/pcs |
Product weight | 0.75kg/pair |
Packing size | 275*220*55mm |
Relative Humidity | 0%~95% ( no condensation) |
MTBF | 100,000 hours |
Warranty | 3 Years |
