1-port 10/100/1000M Ethernet + 1- port Gigabit SFP
Model：MC201-SFP
Support 1-port 10/100/1000M Base-T(X)+1-port Gigabit SFP;
Support MDI/MDI-X auto negotiation, 10M/100/1000M adaptive；
Support flow control;
Supports full /half duplex, Point-to-point transparent transmission;
Support non-blocking wire-speed forwarding;
Plug-and-play, no configuration is required;
LED indicators for easy diagnosis and monitoring work status;
Support External power 5VDC input;
Support 0-50°C wide operating temperature range;
REQUEST A QUOTE
Overview
Feature
Specification
Ordering Information
Download
Video

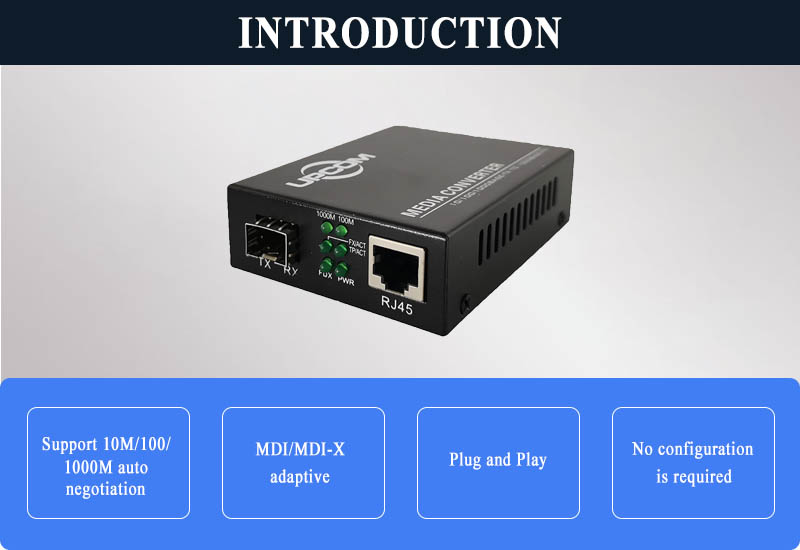

Introduction

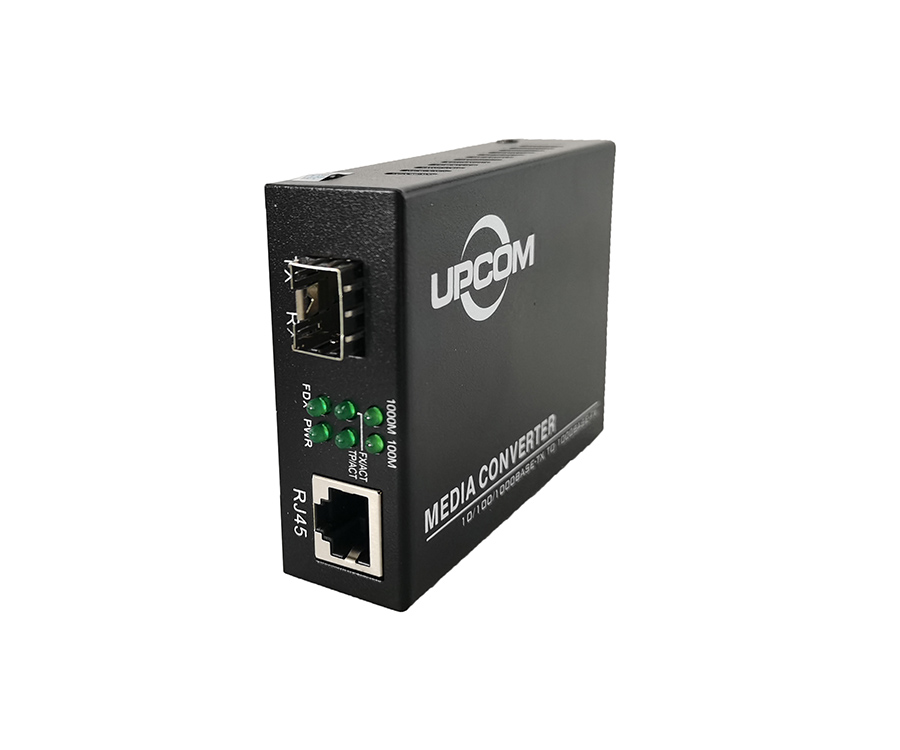

MC201-SFP Gigabit SFP Optical Fiber Converter is a network device that transparently converts data between short-distance electrical signals and long-distance fiber optic signals, plug-and-play, no configuration required, can be operated at wide temperatures range from 0 to 50°C.
UPCOM MC201-SFP Fiber Media Converter support 1-port 10/100/1000M Base-T(X)+1-port Gigabit SFP, adopts durable metal housing, external DC5V, is a flexible and cost-effective solution that can extend transmission distances to 120km through a single-mode fiber, protecting data from noise and electromagnetic interference.

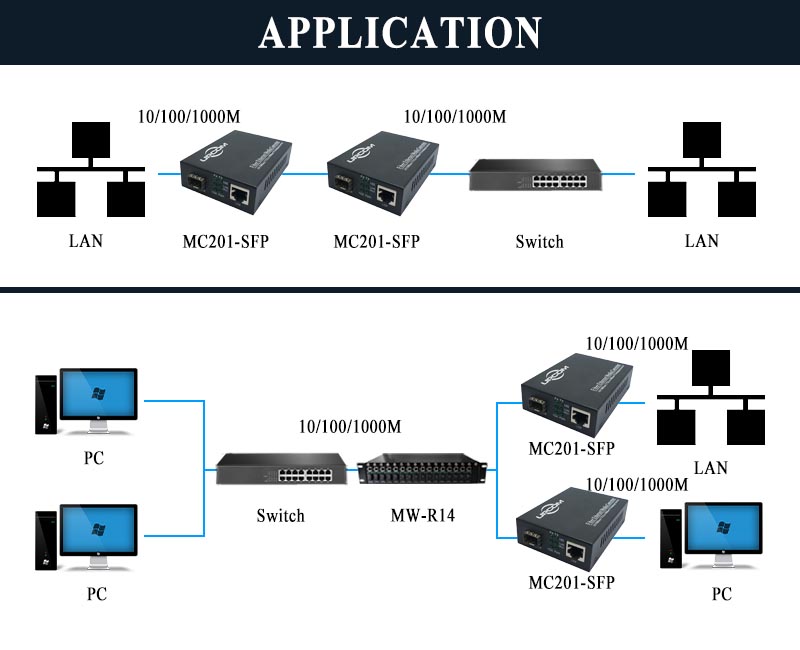

MC201-SFP is ultra-small in size, with shielded RJ45 Ethernet jack, LC fiber-optic connector. Built-in auto-sensing function supports full or half-duplex Ethernet operation, widely used in MAN (metropolitan area network), security monitoring, intelligent transportation and other applications.
MC201-SFP supports stand-alone installation, and can also be inserted into a 2U, 19",14 slots Rack-mount Chassis, with built-in LED indicators for easy diagnosing and monitoring status. including single-mode, multi-mode transmission modes, multi-mode can transmit 2km, single-mode can reach up to 120km.

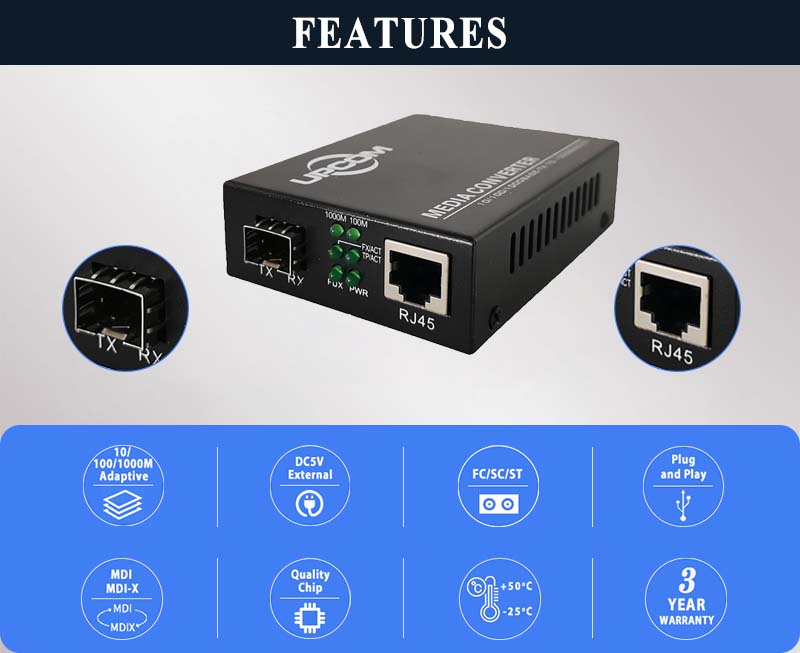

Support 1-port 10/100/1000M Base-T(X)+1-port Gigabit SFP;
Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab,1000Base-TX, IEEE802.3z 1000Base-SX/LX;
Support MDI/MDI-X auto negotiation, 10M/100/1000M adaptive；
Support flow control;
Supports full /half duplex, Point-to-point transparent transmission;
Support non-blocking wire-speed forwarding;
Plug-and-play, no configuration is required;

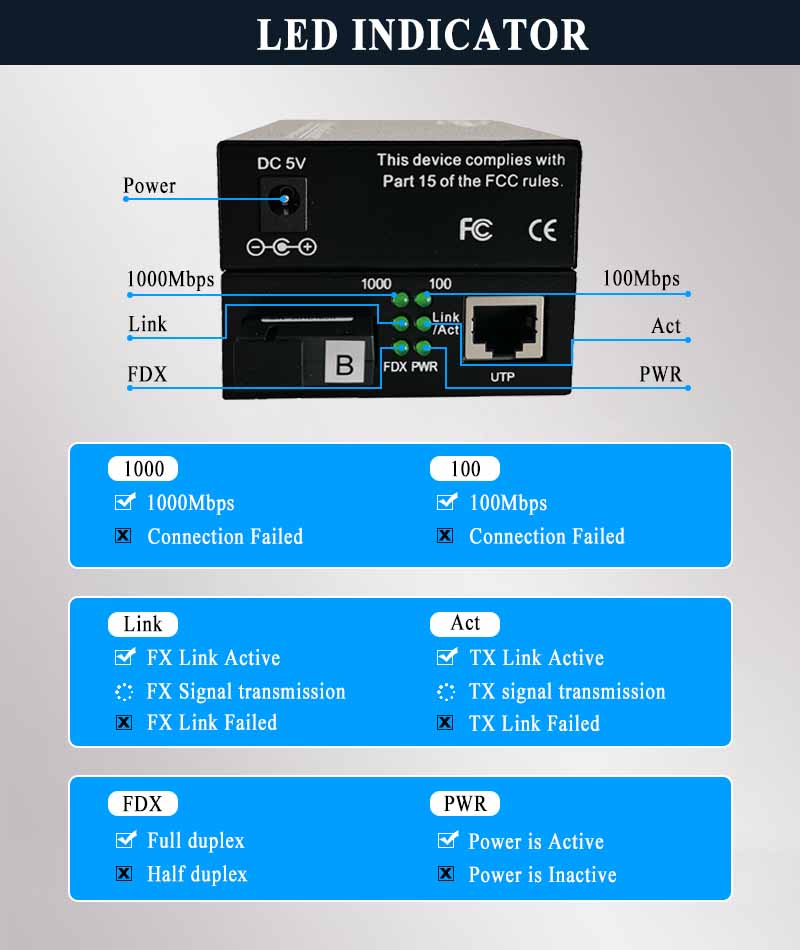

LED indicators for easy diagnosis and monitoring work status;
Support External power 5VDC input;
Support 0-50°C wide operating temperature range;
Low power consumption, No fan, Metal casing;
Support stand-alone or wall Installation;
Can insert to 2U 19", 14 slots Rackmount chassis;
FCC Class A & CE approved, RoHS compliance;
Warranty:3years
Specification
Product Name
1-port 10/100/1000M Base-T(X)+1-port Gigabit SFP Media Converter
