Gigabit Ethernet Media Converter

2-port 10/100/1000M Ethernet Media Converter

Model：MC202

Support 2-port 10/100/1000M Base-T(X)+1-port 1000M FX;
Plug-and-play, no configuration is required;
LED indicators for easy diagnosis and monitoring work status;
Support External power 5VDC input;
Support 0-50°C wide operating temperature range;
Low power consumption, No fan, Metal casing;
Support stand-alone or wall Installation;
FCC Class A & CE approved, RoHS compliance;
Warranty:3years

REQUEST A QUOTE

Overview
Feature
Specification
Ordering Information
Download
Video

Introduction

MC202 Gigabit Ethernet Media Converter is a network device that transparently converts data between short-distance electrical signals and long-distance fiber optic signals, plug-and-play, no configuration required, can be operated at wide temperatures range from 0 to 50°C.

UPCOM MC202 support 2-port 10/100/1000M Base-T(X)+1-port 1000M FX, adopts durable metal housing, external DC5V, is a flexible and cost-effective solution that can extend transmission distances to 120km through a single-mode fiber, protecting data from noise and electromagnetic interference.

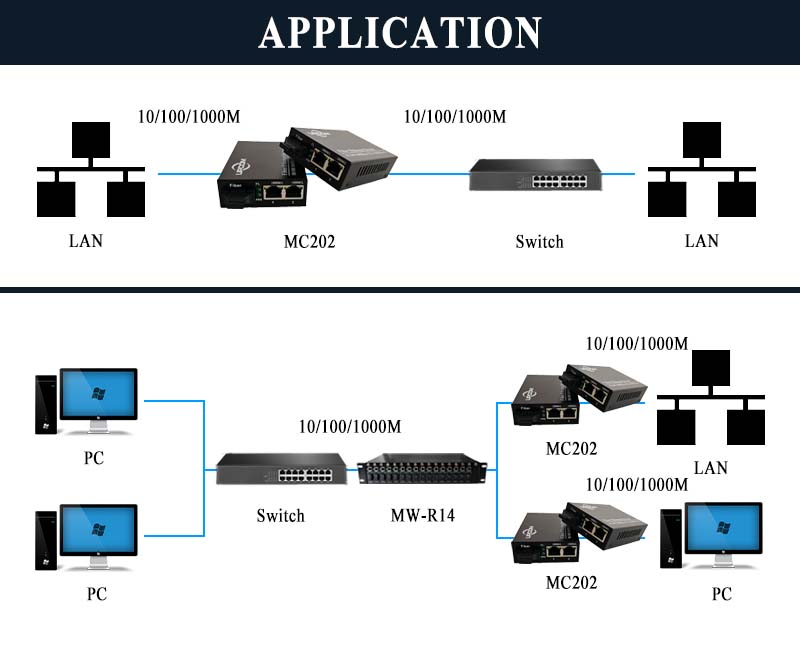

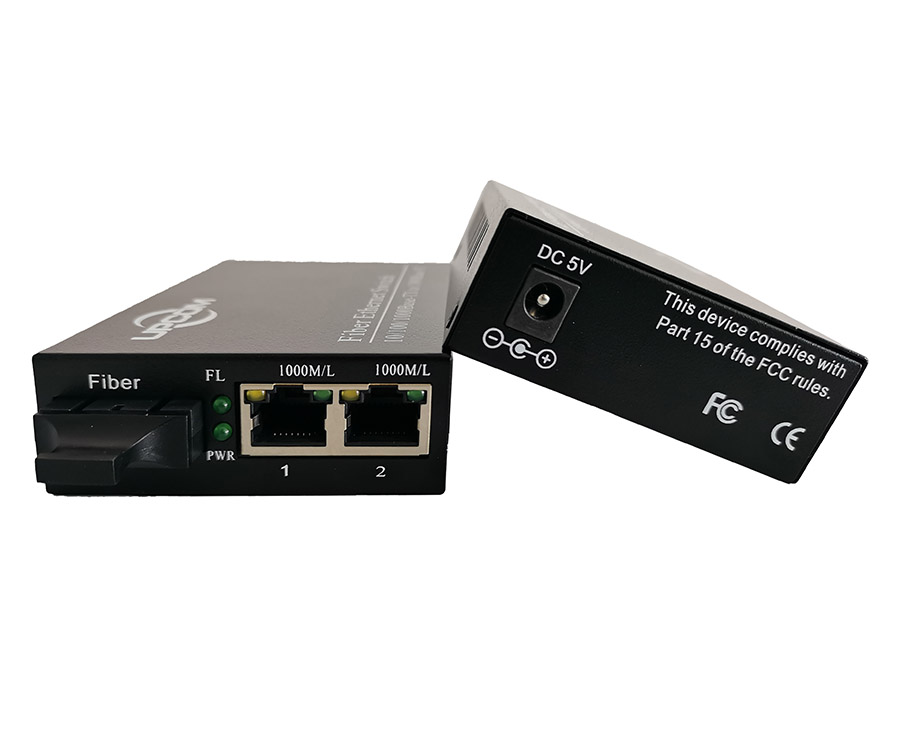

MC202 is ultra-small in size, with shielded RJ45 Ethernet jack, optional SC/ST/FC fiber-optic connector. Built-in auto-sensing function supports full or half-duplex Ethernet operation, widely used in MAN (metropolitan area network), security monitoring, intelligent transportation and other applications.

MC202 supports stand-alone installation, can realize the interconnection between repeaters, hubs, switches, terminals. all photoelectric interfaces conform to international standards, and the products are suitable for different harsh industrial environments. The installation and operating procedures of the Fiber Optic Media Converter are simple and straightforward. Operation status can be monitored through a set of Diagnostic LED located on the front panel, including single-mode and multi-mode transmission modes, the multi-mode can transmit 2km, single-mode can reach up to 120km.

Specification
Product Name	2-port 10/100/1000M Base-T(X)+1-port 1000M FX Ethernet Media Converter
Product Model	MC202
Port Definition	2-port 10/100/1000M Base-T(X)+1-port 1000M FX
Standards	IEEE802.1 10Base-T, IEEE802.3u 100Base-TX,IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-SX/LX
RJ45 port rate	10/100/1000Mbps auto negotiation
Optic port rate	1000Mbps
Working Mode	Asynchronous, point to point
Transmission mode	Half/Full duplex
Forwarding Mode	Store and Forward(Full Wire Speed)
Transfer distance
RJ45port	100m
Fiber optic	20,40,60,80,100,120km(SM),2 km(MM) optional
RJ45 port cable	UTP 5E
Fiber connector	SC, ST, FC optional
Fiber optic cables	Single Mode:8.3/125,8.7/125,9/125 or 10/125µm Muti-Mode:50/125,62.5/125µm
Wavelength	850nm,1310nm,1550nm
Power
Power supply	External 5VDC/1A
Consumption	<3W
Working Environment
Operating Temperature	0-50^oC
Storage temperature	-40°C to 70°C
Ambient Humidity	5%~95% (non-condensing)
MTBF	≥10.0000h
Physical Characteristics
Shell	Iron
Dimension	94mm70.5mm26.5mm
Weight	390g(power external)
Installation	Desktop, 2U-14 slot rack-mount Chassis
Warranty
Warranty	3 Years
Certification	CE, FCC, RoHS

Select	Model Name	Description
	MC202-M-2	2-port 10/100/1000M Base-T(X)+1-port 1000M FX, Multi-mode, 2Km, 5VDC

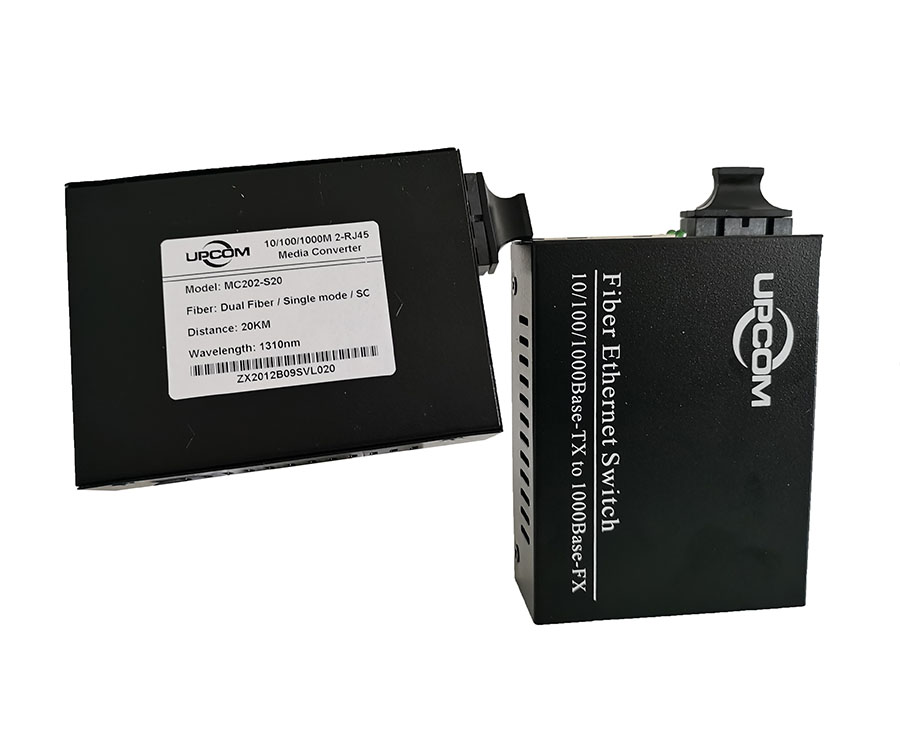

	MC202-S-20	2-port 10/100/1000M Base-T(X)+1-port 1000M FX, Single-mode, 20Km, 5VDC
	MC202-S-40	2-port 10/100/1000M Base-T(X)+1-port 1000M FX, Single-mode, 40Km, 5VDC
	MC202-S-80	2-port 10/100/1000M Base-T(X)+1-port 1000M FX, Single-mode, 80Km, 5VDC
	MC202-S-120	2-port 10/100/1000M Base-T(X)+1-port 1000M FX, Single-mode, 120Km, 5VDC
	MC202-SS-20	2-port 10/100/1000M Base-T(X)+1-port 1000M FX, Single-mode, Single fiber, 20Km
	MC202-SS-40	2-port 10/100/1000M Base-T(X)+1-port 1000M FX, Single-mode, Single fiber, 40Km
	MC202-SS-80	2-port 10/100/1000M Base-T(X)+1-port 1000M FX, Single-mode, Single fiber, 80Km
