Introduction

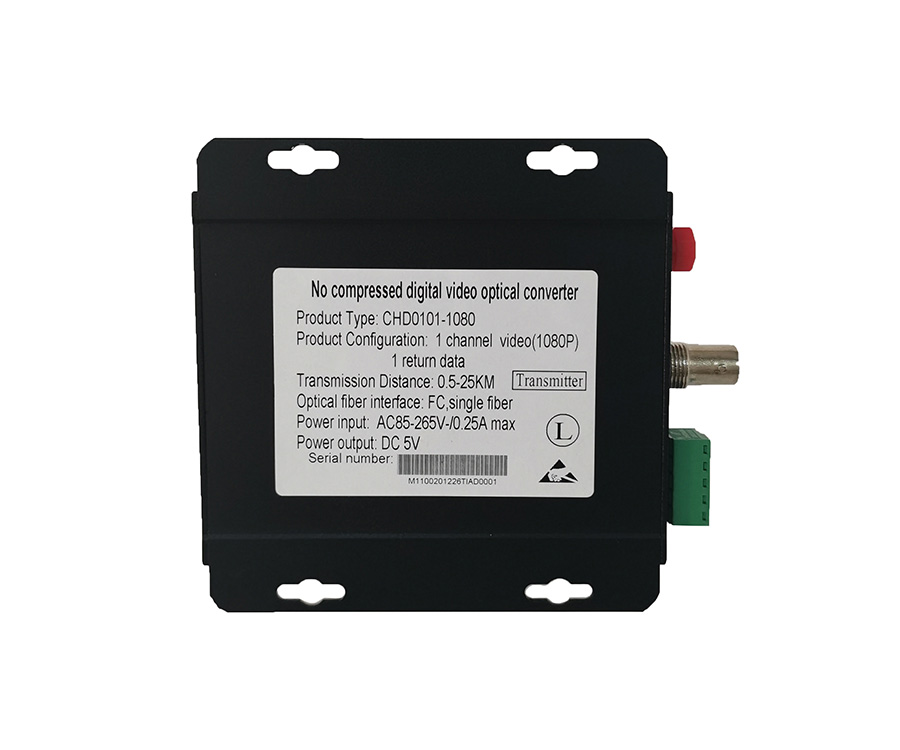

CHD0101-1080 supports 1-Ch TVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD, can simultaneously transmit 1 channels video with 1-port RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM, it is a kind of universal fiber transmission solution/product for CCTV analog video/data signals.
Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.

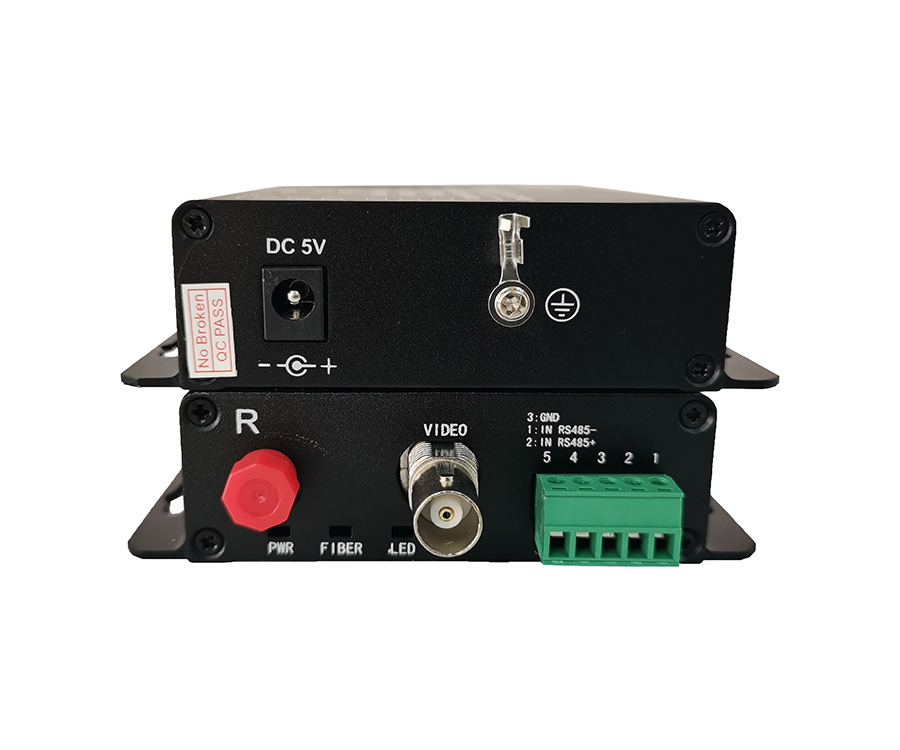

Support 1 channel AHD/CVI/TVI to fiber converter (1080P) with 1ch RS485 data;
Lossless non-compression real time transmission；
CWDM technology offer 3.2G bandwidth to 2ch video , support higher performance；
Automatically identify formats of input video: AHD/TVI/CVI/PAL/NTSC/SECAM；
Support 720P/25/30/50Hz, 960P/25/30Hz,1080P/30Hz;
Support FC connector, single fiber, single mode,20km;
Support External power DC5V;
Advanced lightning protection design ,support 5.7KV lightning protection；
Through LED indicators to inform its functional mode；
Wide range of operational temperature(-15 oC ~65 oC)；
Stand-alone or Rack-mounted, simple installation;
Compatible with AHD/CVI/TVI Cameras;
Warranty: 3 years
