Introduction

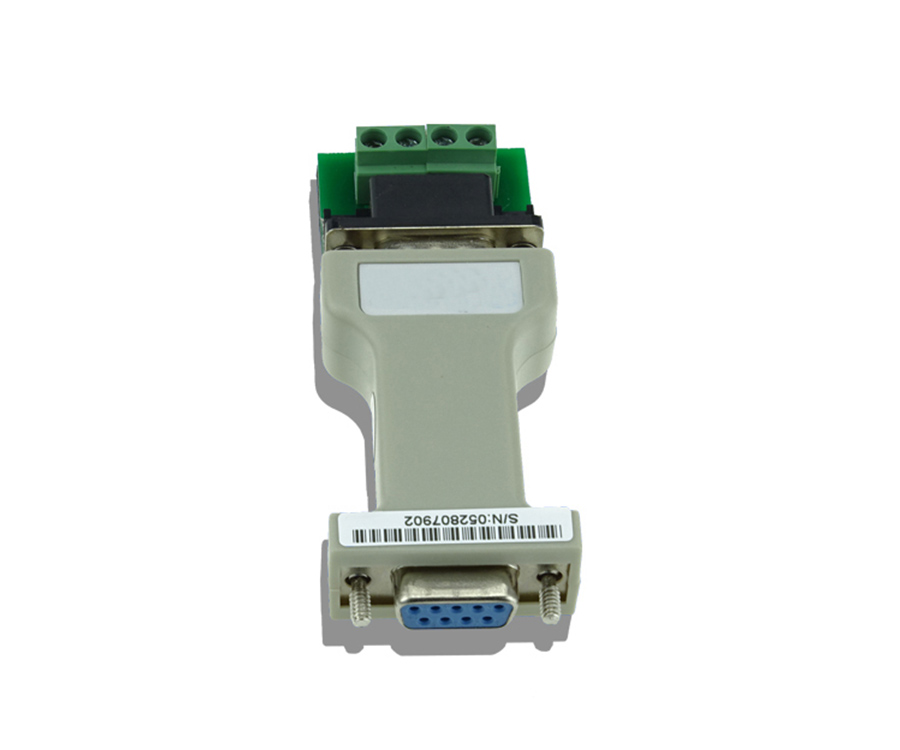

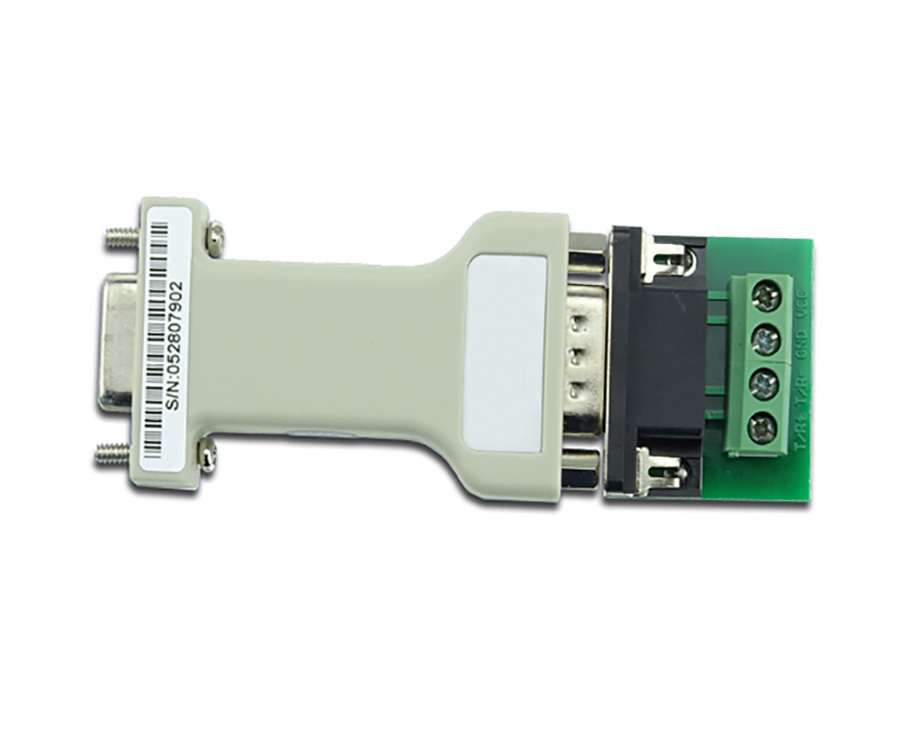

The UP-485-C1 is a commercial type, port-powered RS-232 to RS-485 converter, which can be used to convert any standard RS-232C port into a two-wire half-duplex RS-485 port and vice versa. It supports multi-drop RS-485 networks and can be used to communicate with one loop of up to 128 units of RS-485 devices, it requires no external power, software drivers, or flow control.

UP-485-C1 is port-powered, which has small size, long distance, stable performance and other characteristics. the device is easy to install and meet the needs of serial port data conversion, and are widely used in intelligent power management, power system automation, water conservancy monitoring, industrial automation, distributed data acquisition and other occasions.

Features

 Support commercial type RS-232 to RS-485;

 Port-powered, no external power is required;

 Plug and play (hot-pluggable);

 Built-in 600W surge protection;

 Supports high-speed serial data rates: 300 to 115,200bps;

 Supports up to 128 nodes of RS-485 devices;

 Data direction auto-turnaround, no software drivers or flow control is required;

 Working temperature range:-20~70°C;

 Warranty:3years

 Support commercial type RS-232 to RS-485;

 Port-powered, no external power is required;

 Plug and play (hot-pluggable);

 Built-in 600W surge protection;

 Supports high-speed serial data rates: 300 to 115,200bps;

 Supports up to 128 nodes of RS-485 devices;

 Data direction auto-turnaround, no software drivers or flow control is required;

 Working temperature range:-20~70°C;

 Warranty:3years

REQUEST A QUOTE

Datasheet

Date	Version	Description	Download
2021-05-09	1.0	Commercial RS-232 to RS-485 Converter, 300bps～115.2Kbps, Port-powered

User's Manual

Date	Version	Description	Download
2021-05-09	1.0	Commercial RS-232 to RS-485 Converter, 300bps～115.2Kbps, Port-powered
