1-Port RS232/RS422/RS485 + 1-port 10/100BASE-T(X) Modbus Gateway

Model:MW1011G

Support 1-port 10/100BASE-T(X) + 1-port RS232/RS-485/422 Modbus Gateway;
Support TCP server, TCP client, UDP , Modbus TCP (RTU_MASTER) modes;
Support RTU Master mode, maximum support 16 TCP master connections;
Support Web management;
Support serial port isolation function, isolated voltage 500V AC;
Metal housing with IP40 and high level EMC protection;
Support wide voltage 12-48V DC power input;
Support DIN-Rail Mounting or Wall Mounting installation;
Working temperature range:-40~85°C;
Warranty: 5years

REQUEST A QUOTE

Introduction

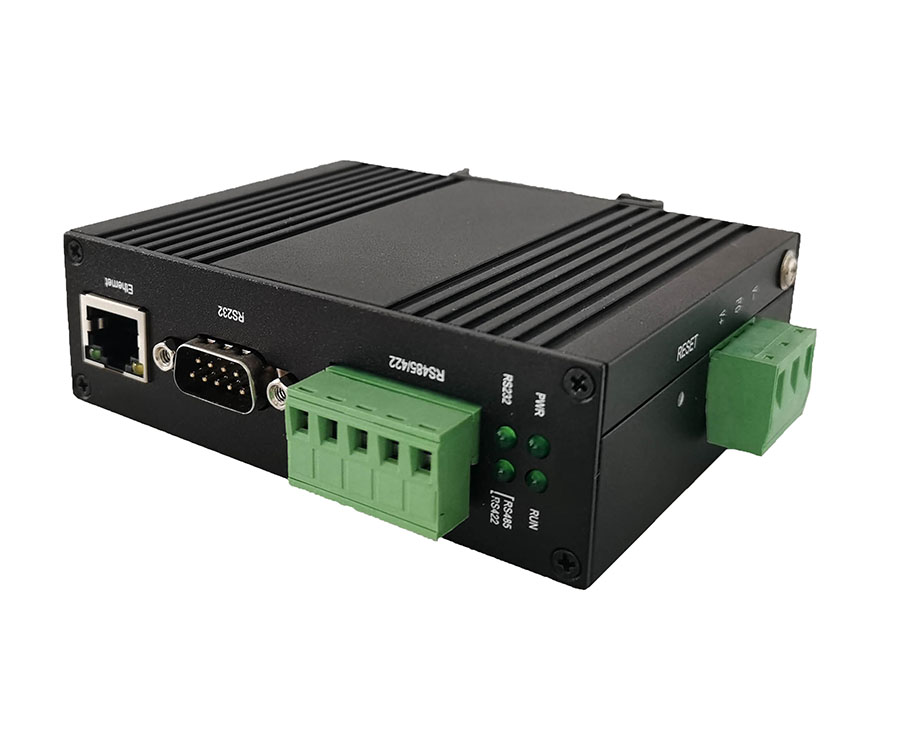

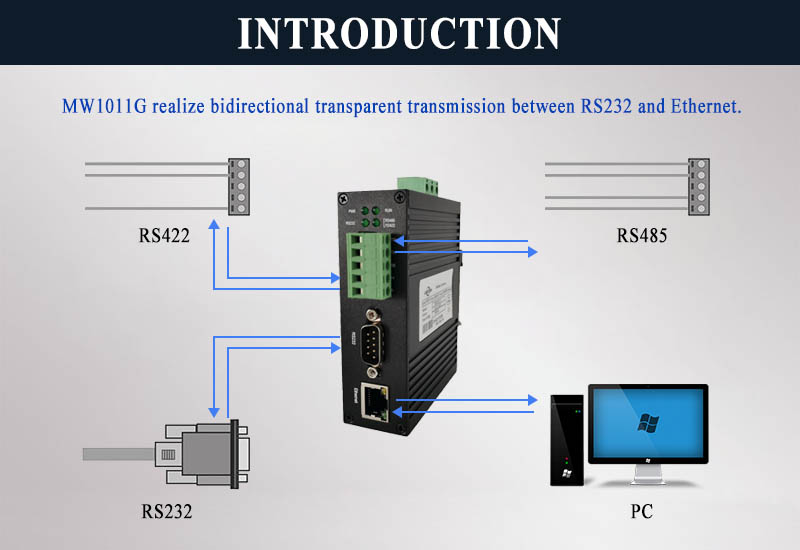

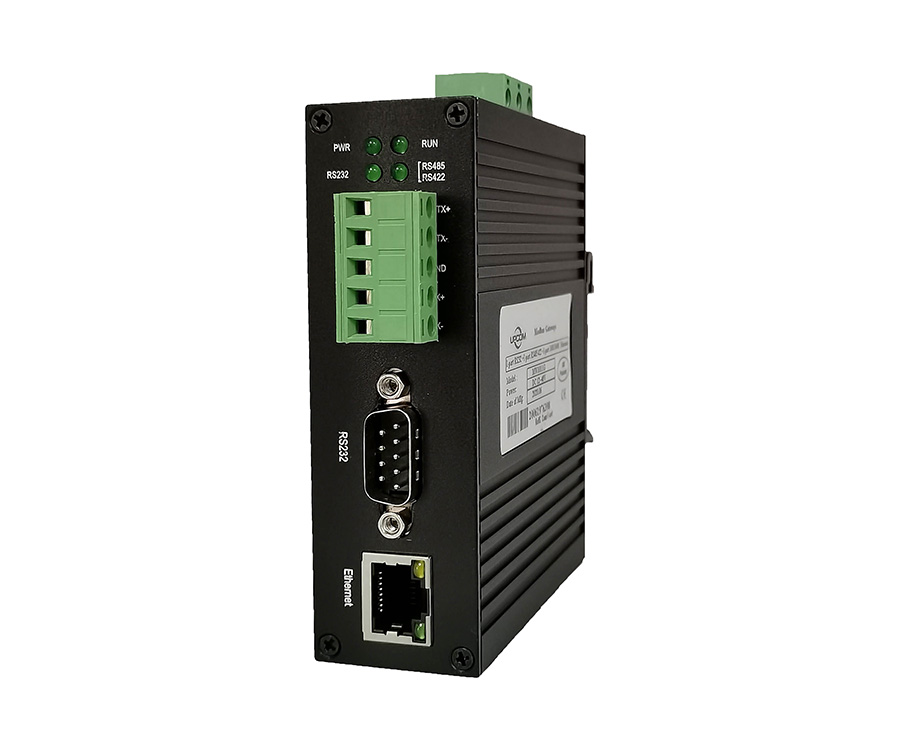

UPCOM MW1011G Din-Rail Serial Gateway support 1-channel RS232/RS-485/422 + 1-port 10/100Base-T(X), adopts high-strength IP40 protective shell, industrial-grade EMC design, supports Auto-Negotiation adaptive technology, provides LED status indication, and supports voltage 12~48V DC power input to increase the reliability of the communication network.

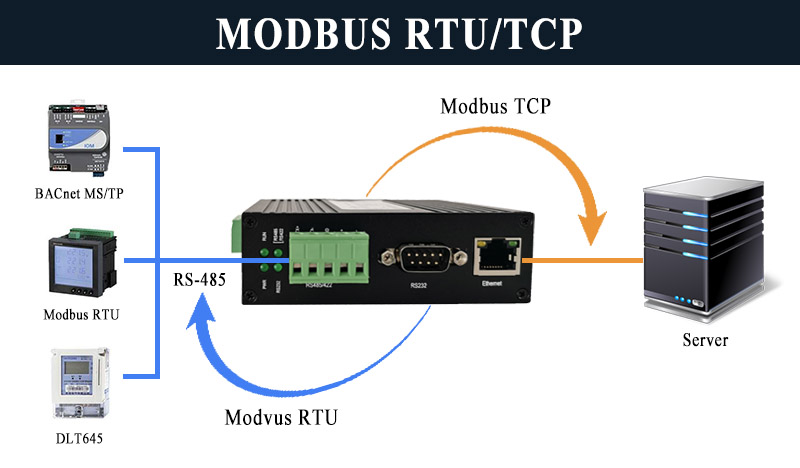

MW1011G can easily and conveniently centralize the management of scattered serial devices and hosts through the network. The communication rate supports 2400~115200bps optional. Built-in Modbus TCP, Modbus RTU protocol make it easy for users to connect Modbus Ethernet devices to Modbus serial devices.Based on industrial installation requirements, DIN35 rail or Wall Mounting installation mode provided. This product adopts the industry excellent network solution, and the operating temperature range is -40~85°C, which can meet the requirements of various industrial serial communication solutions.

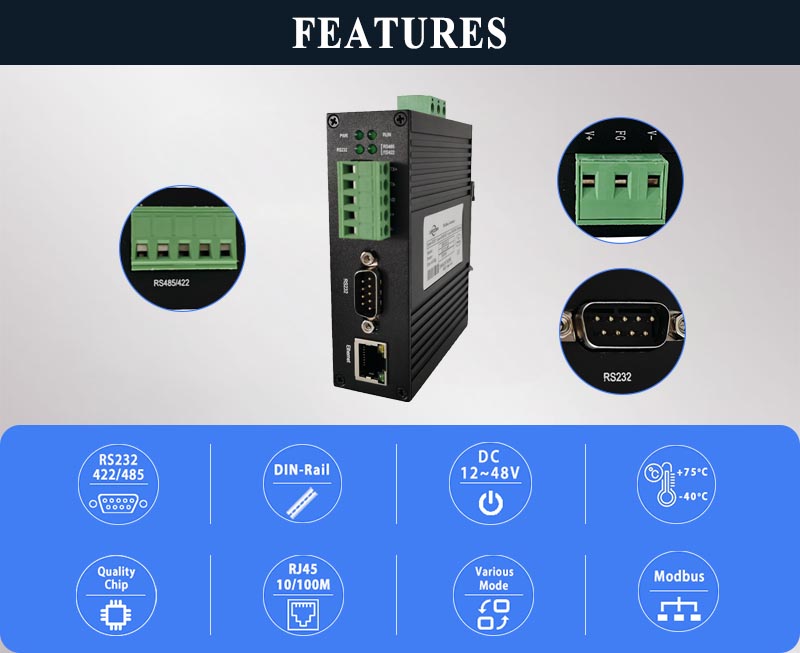

Features

 Support 1-port 10/100BASE-T(X) + 1-port RS232/RS-485/422 Modbus Gateway;

 Support IEEE802.3/802.3u standard, store and forward Exchange Mode;

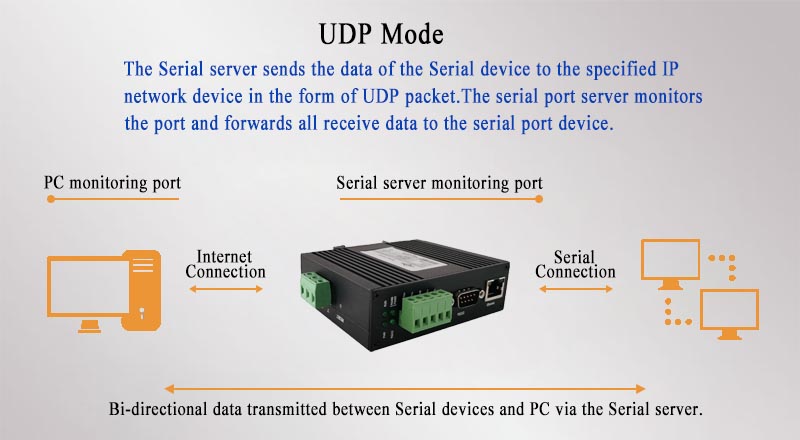

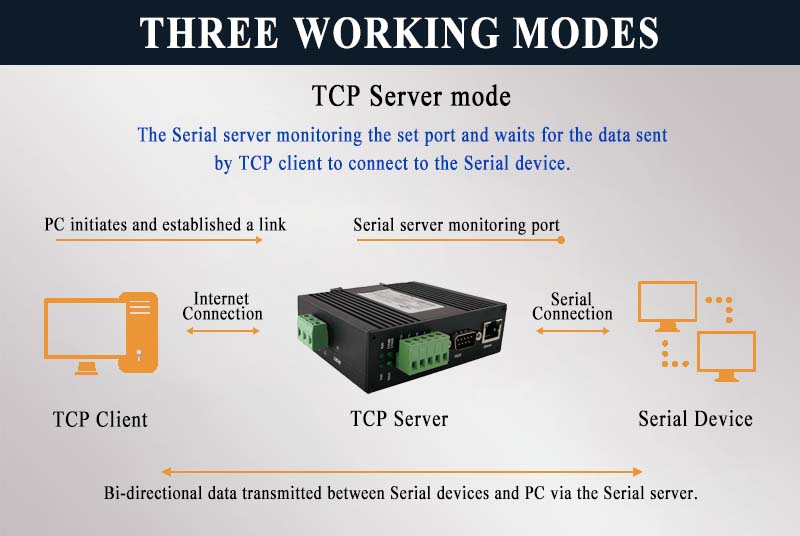

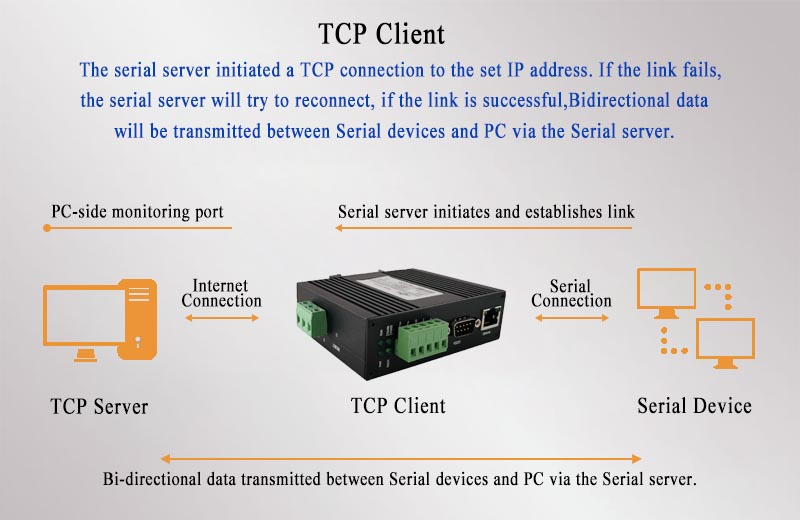

 Support TCP server, TCP client, UDP , Modbus TCP (RTU_MASTER) serial transmission modes;

 Support 2400~115200bps line speed non-blocking communication;

 Support TCP, IP, UDP, Modbus TCP, Modbus RTU, ARP, ICMP, HTTP and TFTP Client protocols;

 Support RTU Master mode, maximum support 16 TCP master connections in this mode;

 Support Web management;

 Support serial port settings, can connect two serial devices via Ethernet;

 Supports gateway, cross-routing communication;

 Low-power consumption design;

 Support serial port isolation function, isolated voltage 500V AC;

 Metal housing with IP40 and high level EMC protection;

 Support wide voltage 12-48V DC power input;

 Support DIN-Rail Mounting or Wall Mounting installation;

 Working temperature range:-40~85°C;

 Warranty:5years
