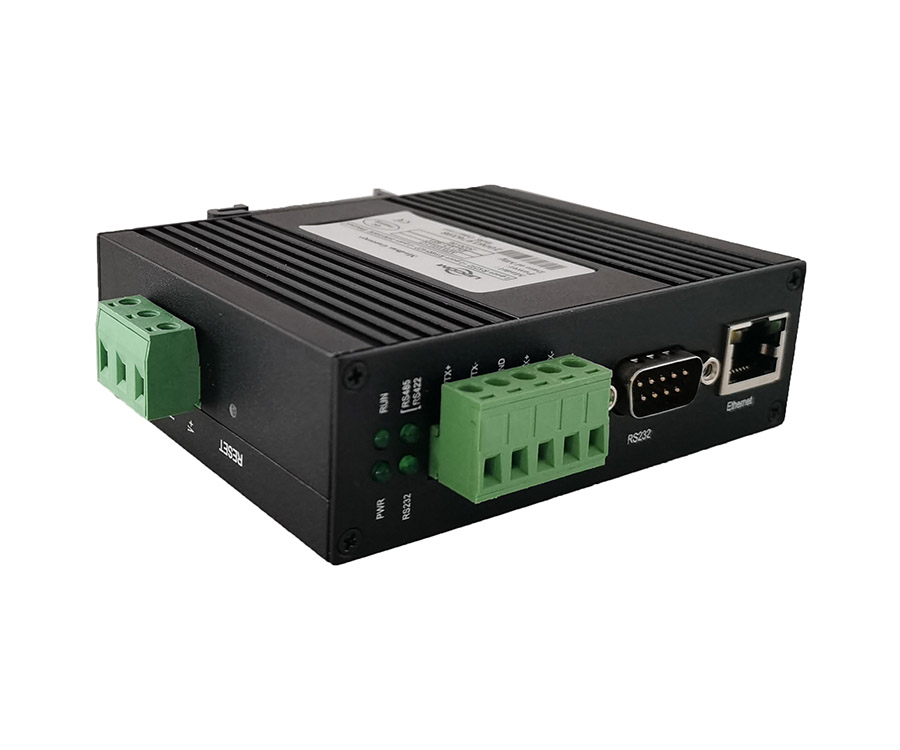

1-Port RS232/RS422/RS485 + 1-port 10/100BASE-T(X)

Model:MW1011

Support 1-port 10/100BASE-T(X) + 1-port RS232/RS-485/422;

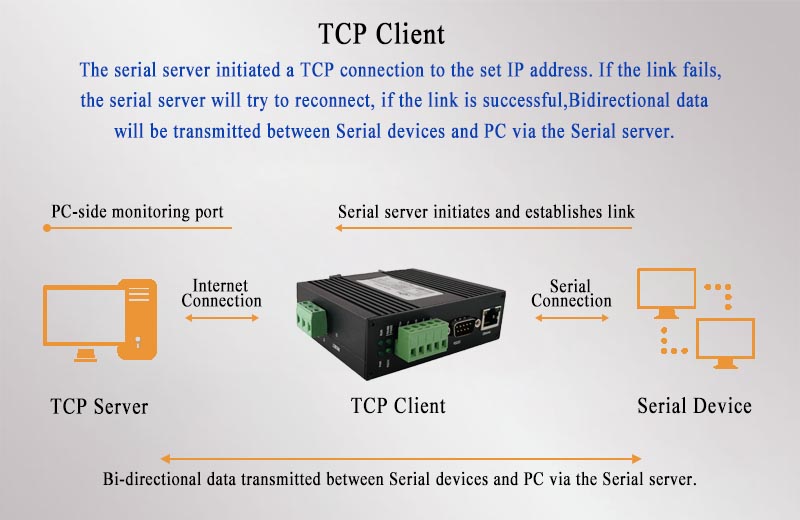

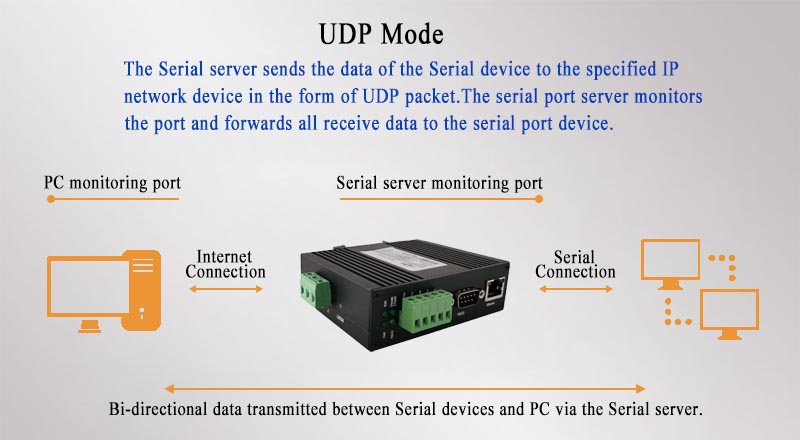

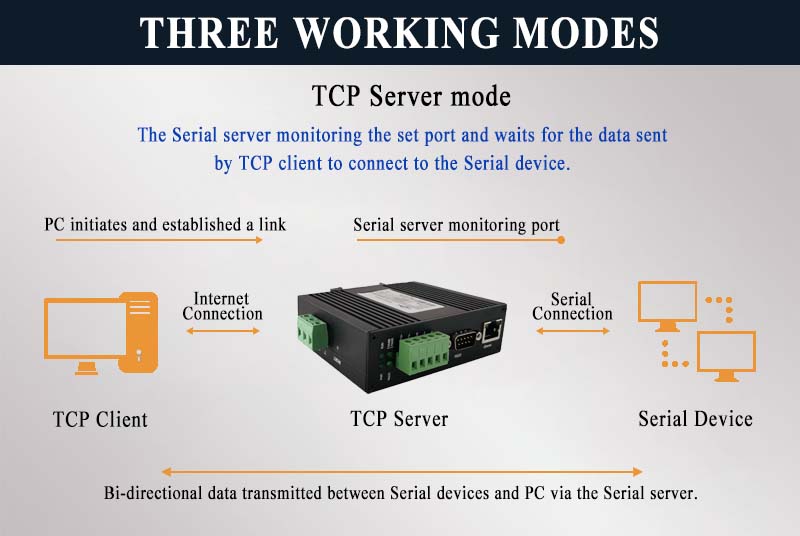

Support TCP server, TCP client, UDP three serial transmission mode
Support TCP, UDP, ModbusTCP, ModbusRTU, ARP, ICMP, HTTP, TFTP;
Support Modbus TCP(RTU_MASTER);
Support Web management;
Metal housing with IP40 and high level EMC protection;
Support redundant wide voltage 12-48V DC power input;

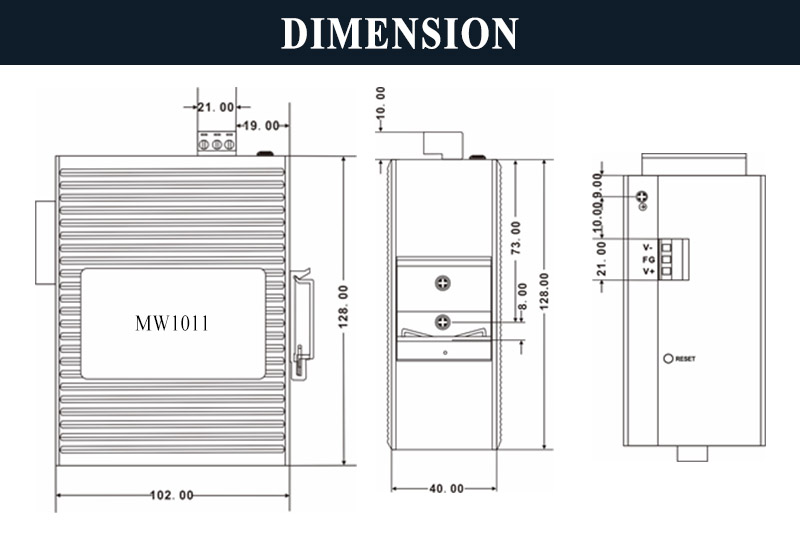

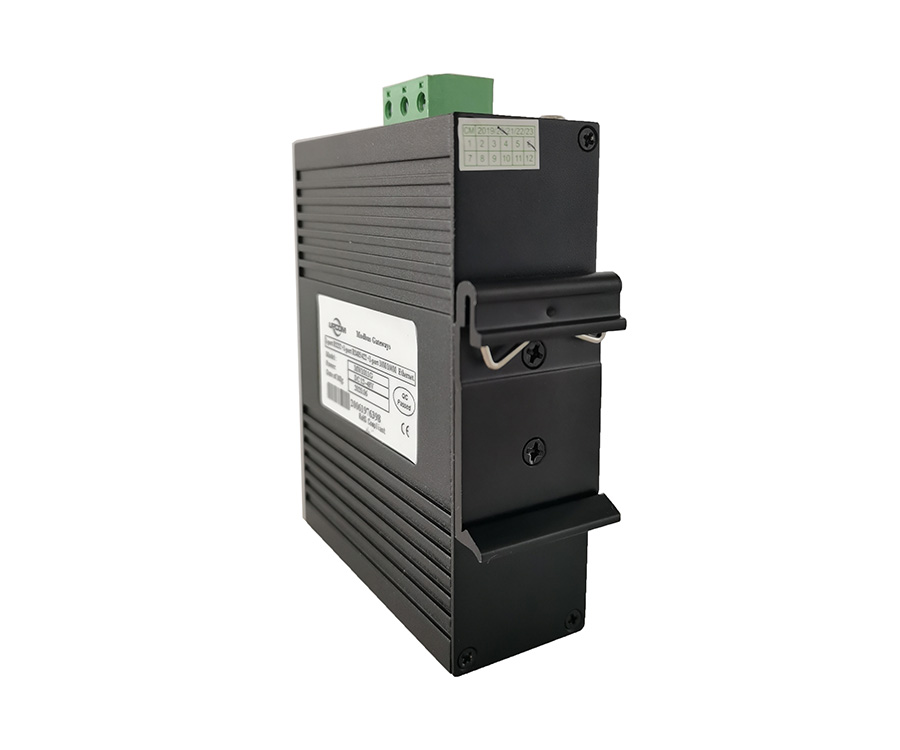

Support DIN-Rail Mounting or Wall Mounting installation;
Working temperature range:-40~85°C;
Warranty:5years

REQUEST A QUOTE

Introduction

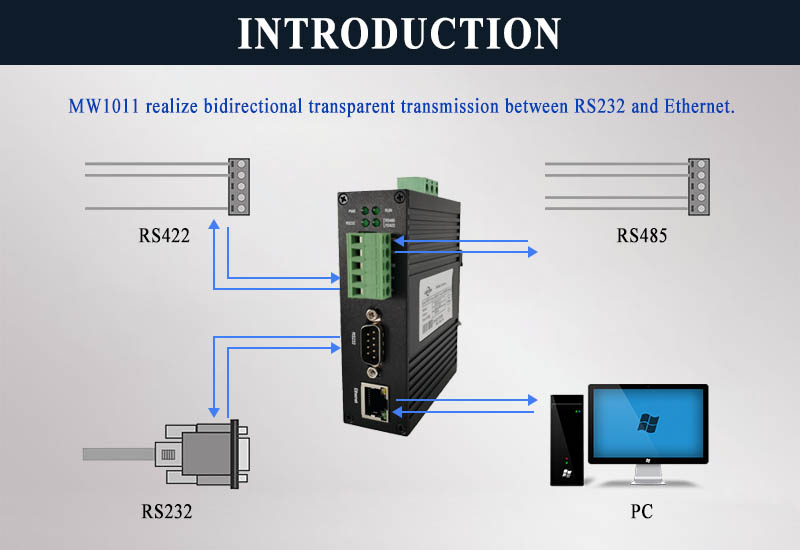

MW1011 Din-Rail industrial serial server support 1-channel RS232/RS-485/422 + 1-port 10/100Base-T(X), adopts high-strength IP40 protective shell, industrial-grade EMC design, supports Auto-Negotiation adaptive technology, provides LED status indication, and supports voltage 12~48V DC power input to increase the reliability of the communication network.


MW1011 can easily and conveniently centralize the management of scattered serial devices and hosts through the network. The communication rate supports 110~115200bps optional. Built-in Modbus TCP and Modbus RTU protocols, users can easily connect Modbus Ethernet devices and Modbus serial devices. Based on industrial installation requirements, 35mm rail installation mode is provided. This product adopts the industry excellent network solution, and the operating temperature range is -40~85℃, which can meet the requirements of various industrial scenes and provide convenient serial communication solutions.

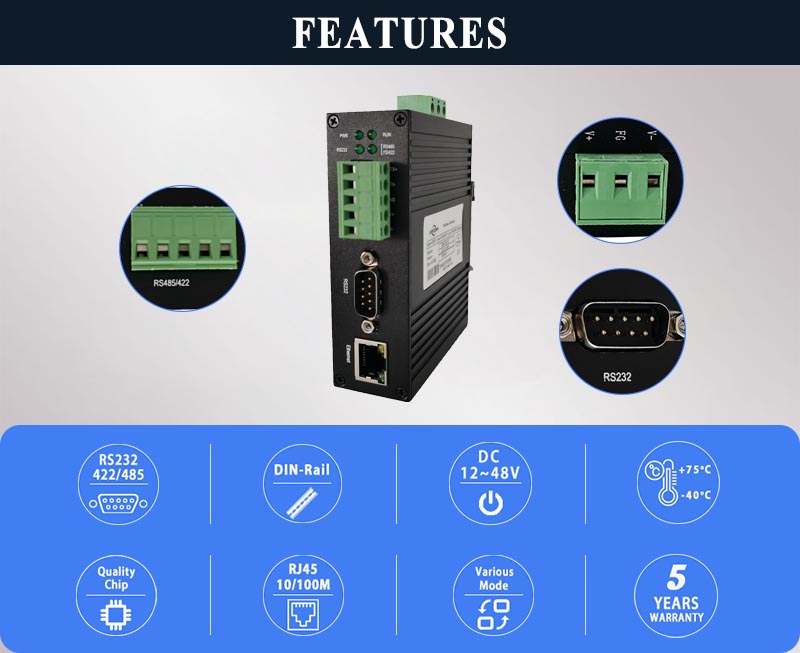

Features

 Support 1-port 10/100BASE-T(X) + 1-port RS232/RS-485/422;

 Support IEEE802.3/802.3u standard, store and forward Exchange Mode;

 Support TCP server, TCP client, UDP three serial transmission mode, 110~115200bps line speed non-blocking communication;

 Support TCP, UDP, ModbusTCP, ModbusRTU, ARP, ICMP, HTTP, TFTP;

 Support Modbus TCP(RTU_MASTER);

 Support Web management;

 Support serial port settings, can connect two serial devices via Ethernet;

 Supports gateway, cross-routing communication;

 Low-power consumption design;

 Metal housing with IP40 and high level EMC protection;

 Support redundant wide voltage 12-48V DC power input;

 Support DIN-Rail Mounting or Wall Mounting installation;

 Working temperature range:-40~85°C;

 Warranty:5years
