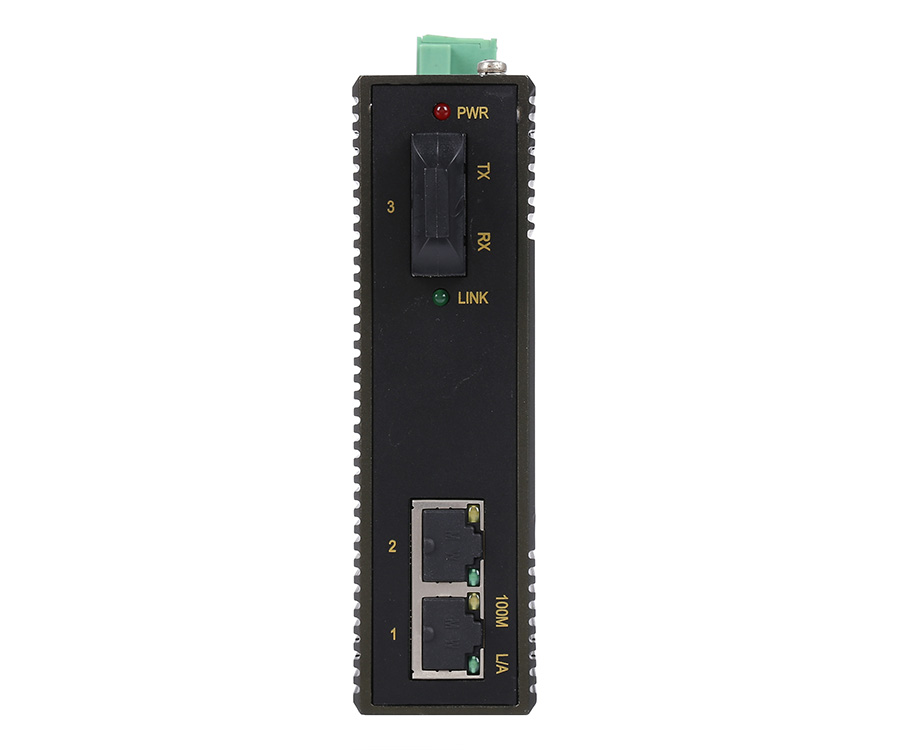

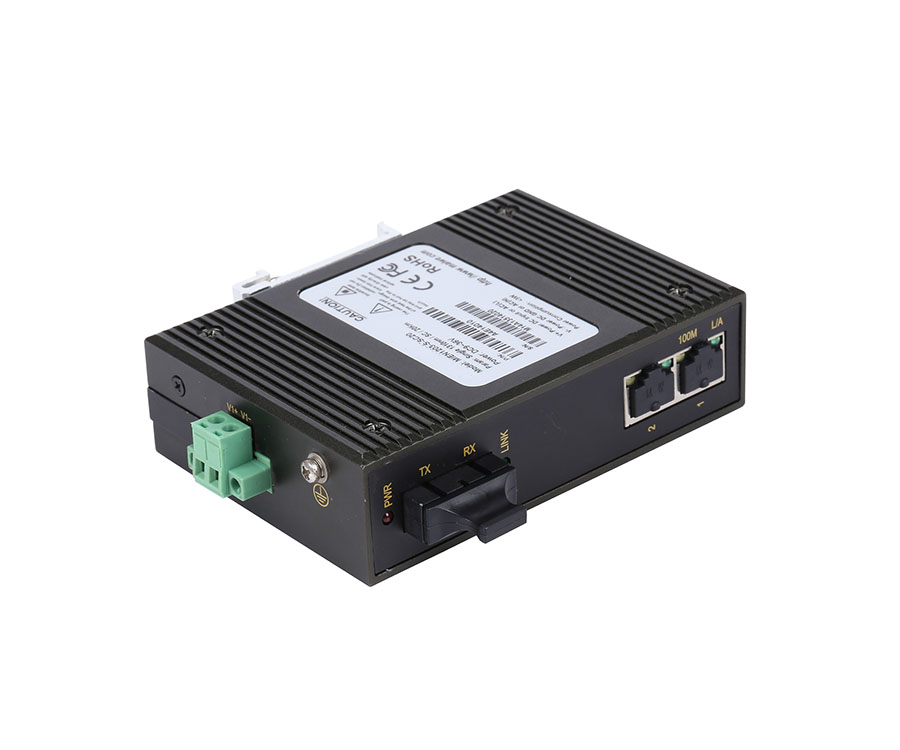

Unmanaged Layer2 Industrial Fiber Media Converter

2-port 10/100M Base-T(X) + 1-port 100Base-FX Din-Rail Unmanaged

Model：IMC102

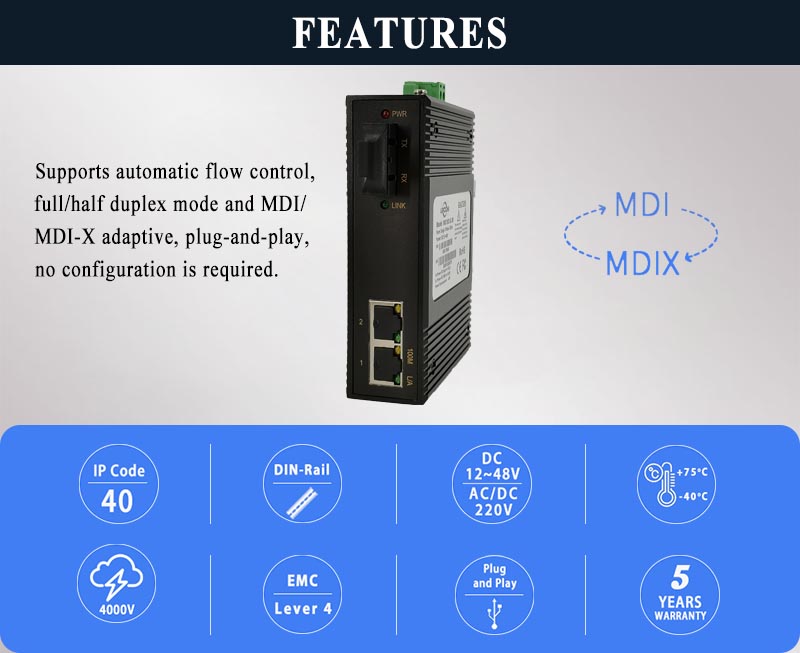

Support 2-port 10/100M Base-T(X) + 1-port 100Base-FX;
Plug-and-play, no configuration is required;
Support IP40 protection, aluminum alloy shell, fanless design;
Support DC12-48V or AC/DC 220V power supply;
Support over Voltage, over current, EMC protection;
Support -40~75°C wide operating temperature range;
DIN-Rail or wall Installation;
Warranty:5years

REQUEST A QUOTE

Overview
Feature
Specification
Ordering Information
Download
Video

Introduction

UPCOM IMC102 is a rugged industrial grade, Din-Rail, layer2, Unmanaged Media Converter that supports 2-port 10/100M Base-T(X) +1-port 100Base-FX. Plug and play, easy to install, no configuration is required, can be operated at wide temperatures range from -40 to 75°C.

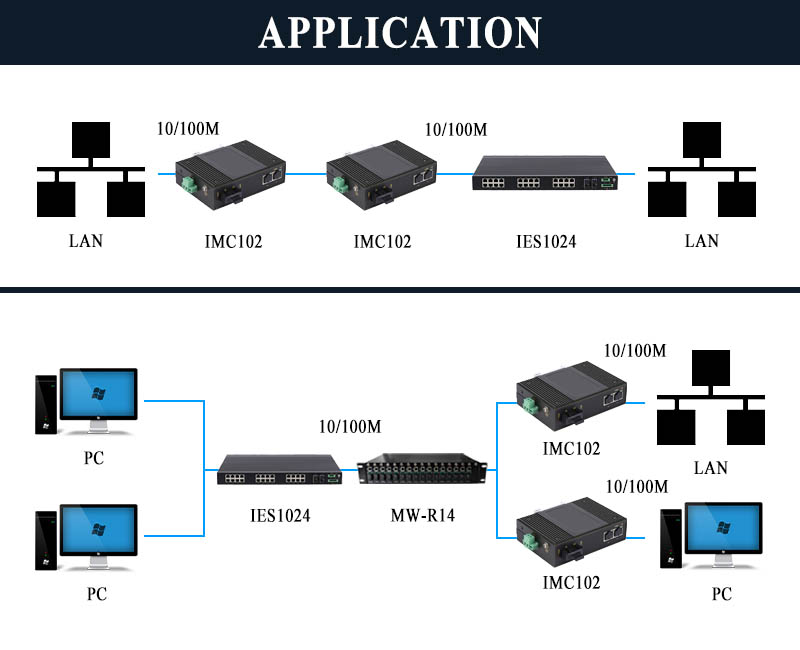

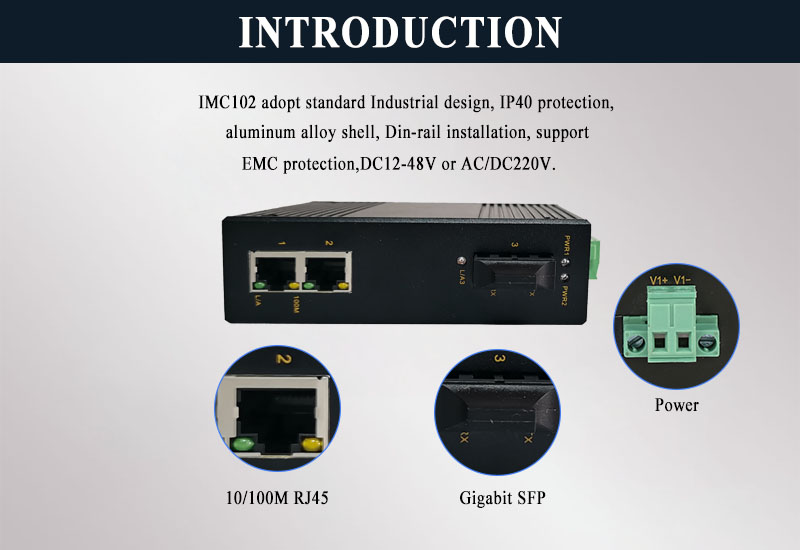

IMC102 adopts standard Industrial design, IP40 protection, aluminum alloy shell, support Din-rail or wall installation, fanless design, support EMC level 4 protection, DC12-48V or AC/DC220V optional, can meet the requirement of various Industrial automation, Data Center Network, Intelligent Transportation System, Electric Power Industry, and new energy applications.

Specification
Product Name	3-port 10/100M Din-Rail Unmanaged Industrial Media Converter
Product Model	IMC102
Port Definition	2-port 10/100M RJ45 +1-port 100Base-FX

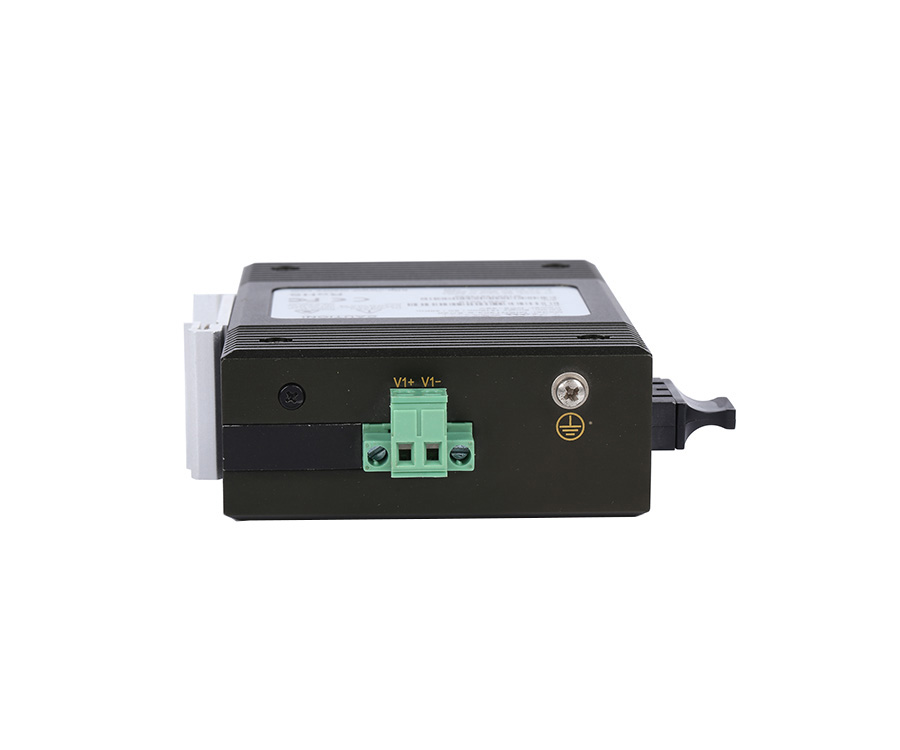

Terminal block for power input	5.08mm terminal block
Protocol Standard	IEEE802.3(Ethernet), IEEE802.3u(100Base-TX&100Base-FX)
Protocol Standard	IEEE802.3x(Flow control)
Switch capability
MAC Table Size	1K
Switch Bandwidth	0.6Gbps
Switch Delay	<5μs
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Multi-mode fiber	100M multi-mode: 1310nm 2km
Single mode fiber	100M single mode: 1310nm 20km; 1550nm 40/60/80/100/120km
LED indicator lights
Front panel LED lights	Port light: LINK/ACT;SPEED;
Front panel LED lights	Power LED: PWR

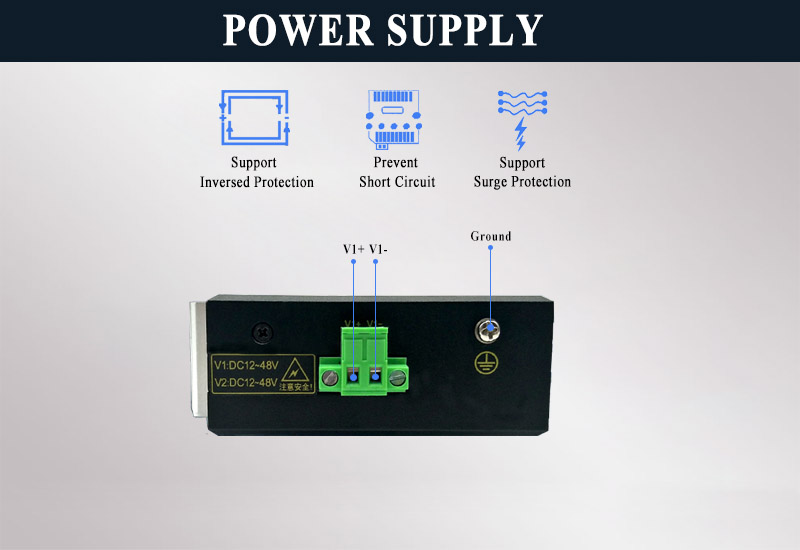

Power
Input power	DC12-48V or AC/DC220V
Full-load consumption	<5W
Overload protection	support
Inversed protection	support
Working Environment
Operating Temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95% (non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell

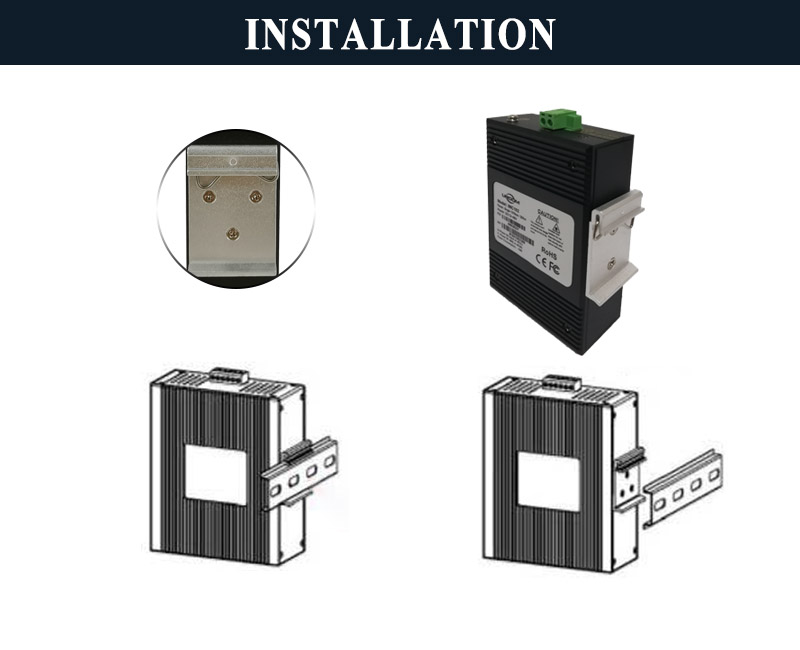

Installation	35mm din-rail Installation

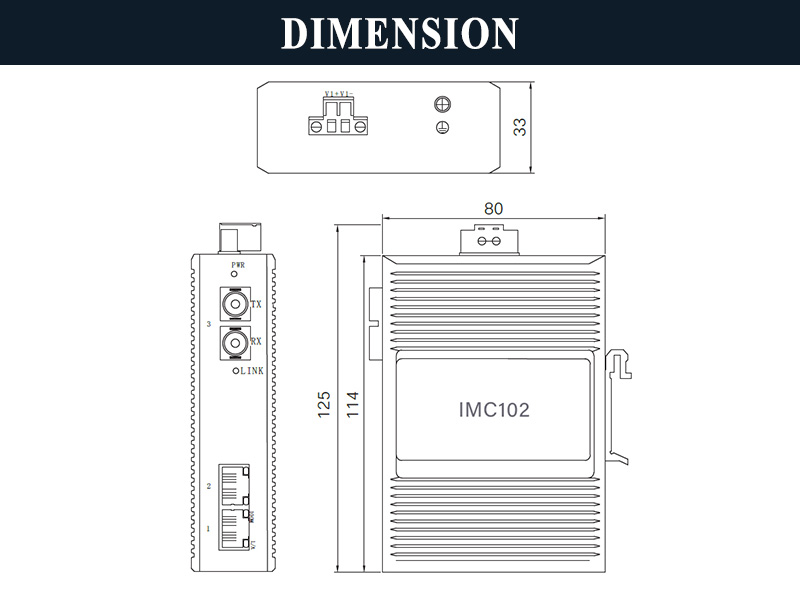

Dimension	35mm118mm86mm
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE, FCC, RoHS

Select	Model Name	Description
	IMC102	2-port 10/100M Base-T(X)+1-port 100M FX, DC12-48V
	IMC102-AD220	2-port 10/100M Base-T(X)+1-port 100M FX, AC/DC220V

Date	Version	Description	Download
2018-08-09	1.0	2-port 10/100M Base-T(X) + 1-port 100Base-FX Din-Rail Unmanaged

Date	Version	Description	Download
2018-08-09	1.0	2-port 10/100M Base-T(X) + 1-port 100Base-FX Din-Rail Unmanaged
