8-port 10/100M Ethernet +2-port Gigabit SFP + 1-port RS232+ 3-port RS485

Model:IES3010-2GS-404

8-port 10/100M Ethernet +2-port Gigabit SFP + 1-port RS232+ 3-port RS485;
Support Web, CLI and SNMP three management modes;
Support three working modes of TCP server, TCP client and UDP;
Adopt with high strength IP40 housing and industrial EMC design;
Support redundant wide voltage 12-48V DC power input;
Support DIN-Rail Mounting or Wall Mounting installation;
Working temperature range:-40~85°C;
Warranty:5years

REQUEST A QUOTE

Introduction

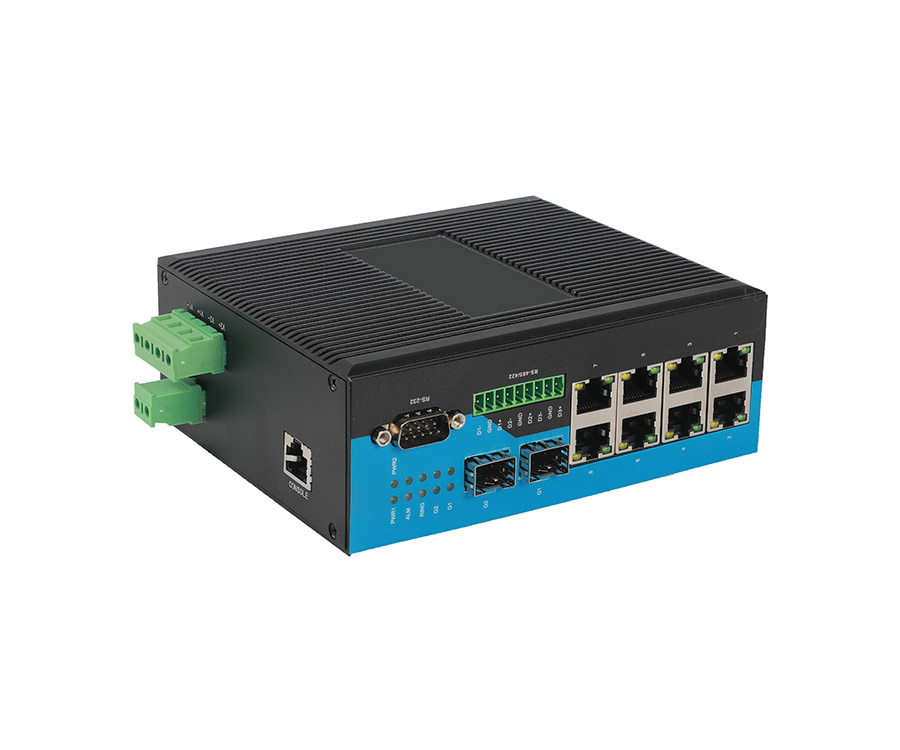

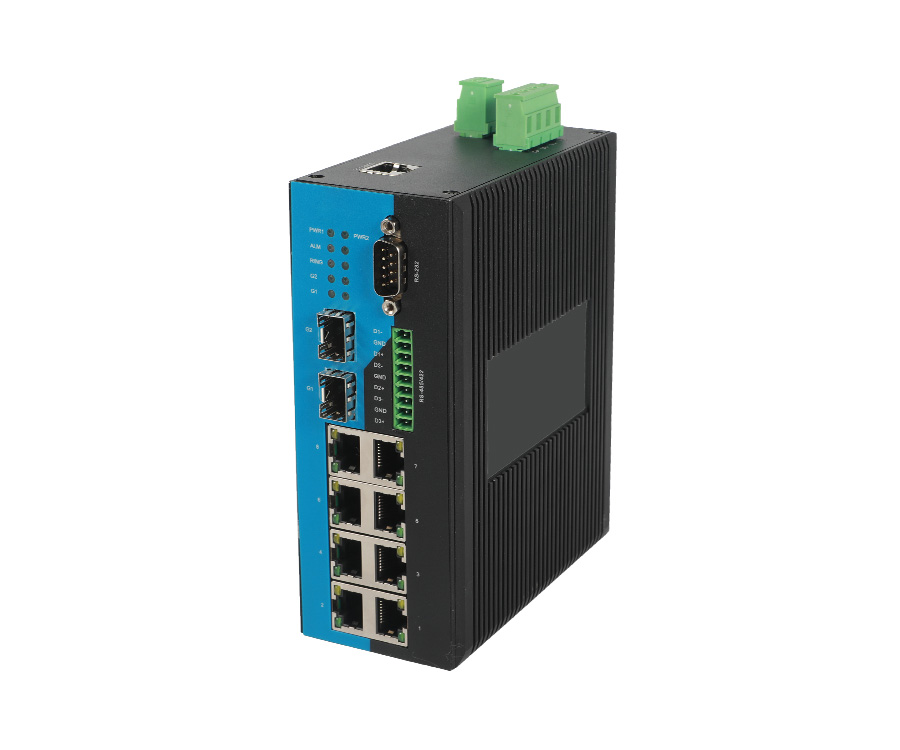

IES3010-2GS-404 is a 10-Port Serial Port Combo Managed Industrial Ethernet Switch which support 8-port 10/100M Ethernet +2-port Gigabit SFP + 1-port RS232+ 3-port RS485, is specially designed to meet the needs of flexible industrial applications, and provides a cost-effective Ethernet solution. Provides powerful management function that can be managed through a web browser, command line (CLI), and SNMP. Support a wide range of redundant power input (12-48V DC) to increase the reliability of the communication network.

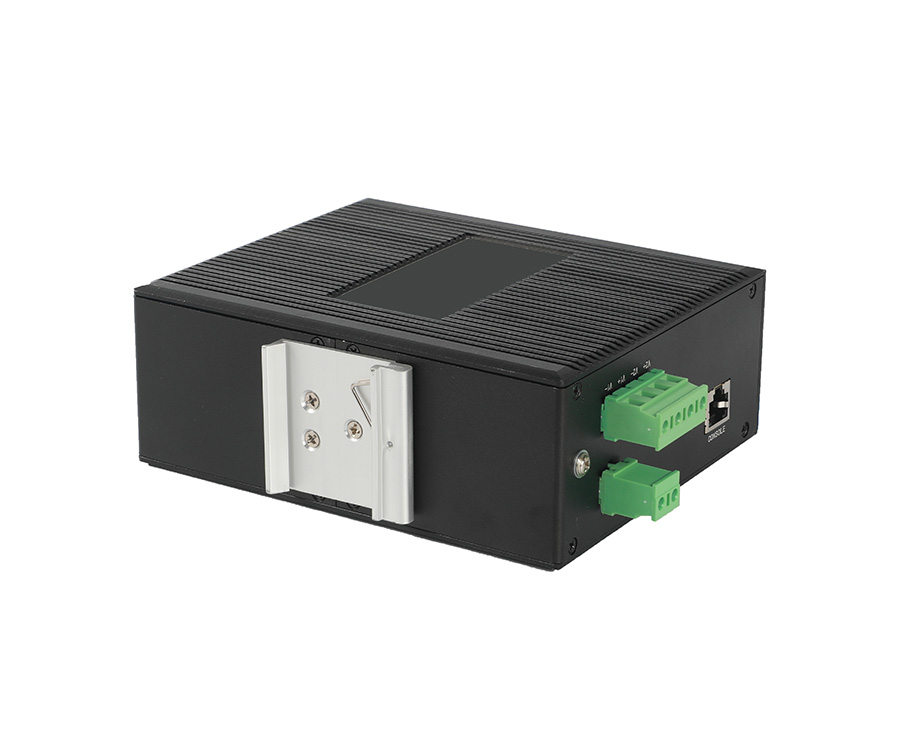

IES3010-2GS-404 can transmit the serial port data through Ethernet network, and the optical and electric combination can flexibly carry out according to the requirements of the service port. Base on the needs of industrial installation, DIN35 rail or wall mounting two installation modes provided. The product adopt with fan free, low power consumption, industrial grade design, - 40 ~ 85°C working temperature range, which can meet the requirements of various industrial sites and provide convenient Ethernet communication solutions.


Features

 Support 8-port 10/100M Ethernet +2-port Gigabit SFP + 1-port RS232+ 3-port RS485;

 Support broadcast storm suppression function;

 Support port mirroring for online debugging and monitoring of network data status;

 Support QoS, IGMP, 802.1Q VLAN management function;

 Support unicast / multicast MAC address management;

 Support static IGMP multicast filtering;

 Support Web, CLI and SNMP three management modes;

 Support RSTP and MW-Ring, for Ethernet redundancy, ring network self-healing time < 20ms;

 Support three working modes of TCP server, TCP client and UDP;

 Adopt with high strength IP40 housing and industrial EMC design;

 Support redundant wide voltage 12-48V DC power input, full load power consumption less than 11W;

 Support DIN-Rail Mounting or Wall Mounting installation;

 Working temperature range:-40~85°C;

 Warranty:5years
