Introduction
MC204-2FG is a gigabit optical fiber to ethernet converter that transparently converts data between short-distance electrical signals and long-distance fiber optic signals, plug-and-play, no configuration required, can be operated at wide temperatures range from 0 to 50°C.
UPCOM MC204-2FG support 4-port 10/100/1000M Base-T(X)+2-port 1000M Fiber, adopts durable metal housing, external DC5V, is a flexible and cost-effective solution that can extend transmission distances to 120km through a single-mode fiber, protecting data from noise and electromagnetic interference.

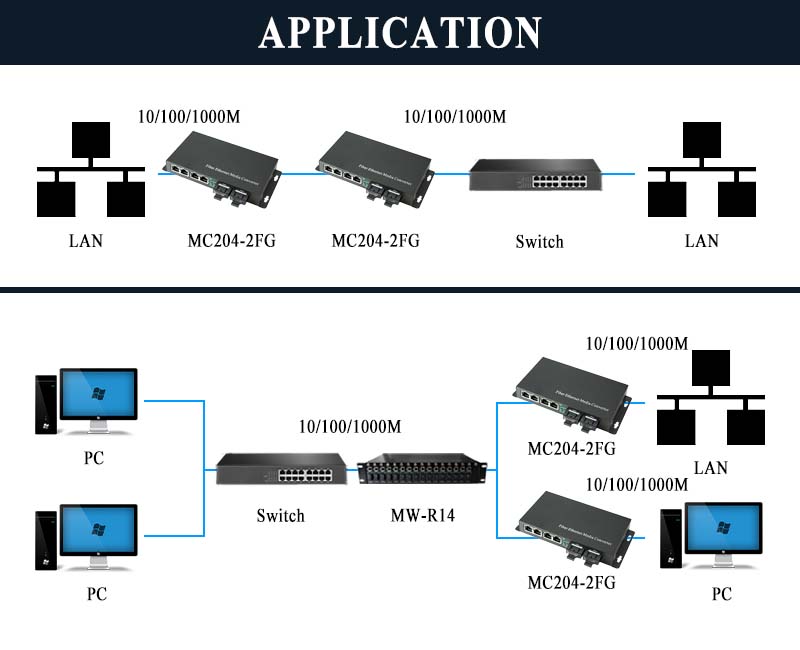

MC204-2FG is ultra-small in size, with shielded RJ45 Ethernet jack, SC/FC/ST fiber-optic connector. Built-in auto-sensing function supports full or half-duplex Ethernet operation, widely used in MAN (metropolitan area network), security monitoring, intelligent transportation and other applications.
MC204-2FG supports stand-alone installation, can realize the interconnection between repeaters, hubs, switches, terminals. all photoelectric interfaces conform to international standards, and the products are suitable for different harsh industrial environments. The installation and operating procedures of the Fiber Optic Media Converter are simple and straightforward. Operation status can be monitored through a set of Diagnostic LED located on the front panel, including single-mode and multi-mode transmission modes, the multi-mode can transmit 2km, single-mode can reach up to 120km.
Support 4-port 10/100/1000M Base-T(X)+2-port 1000M FX;
Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX,IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-SX/LX;
Support MDI/MDI-X auto negotiation, 10M/100/1000M adaptive；
Support flow control;
Supports full /half duplex, Point-to-point transparent transmission;
Support non-blocking wire-speed forwarding;
Plug-and-play, no configuration is required;
LED indicators for easy diagnosis and monitoring work status;
Support External power 5VDC input;
Support 0-50°C wide operating temperature range;
Low power consumption, No fan, Metal casing;
Support stand-alone or wall Installation;
FCC Class A & CE approved, RoHS compliance;
Warranty:3years
