Introduction
UPCOM contact closure fiber optic converter is specially designed for long-distance optical fiber transmission, using self-developed non-compressed digital photoelectric conversion technology, using optical fiber point-to-point transmission contact closure, Ethernet, to achieve no delay,High reliability contact closure control, network transmission.

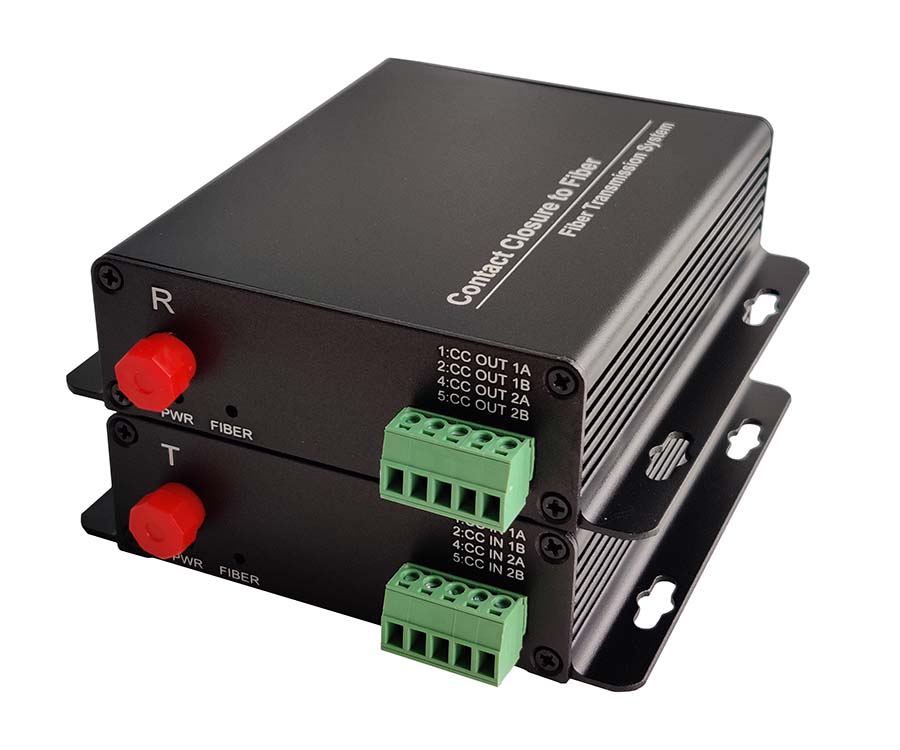

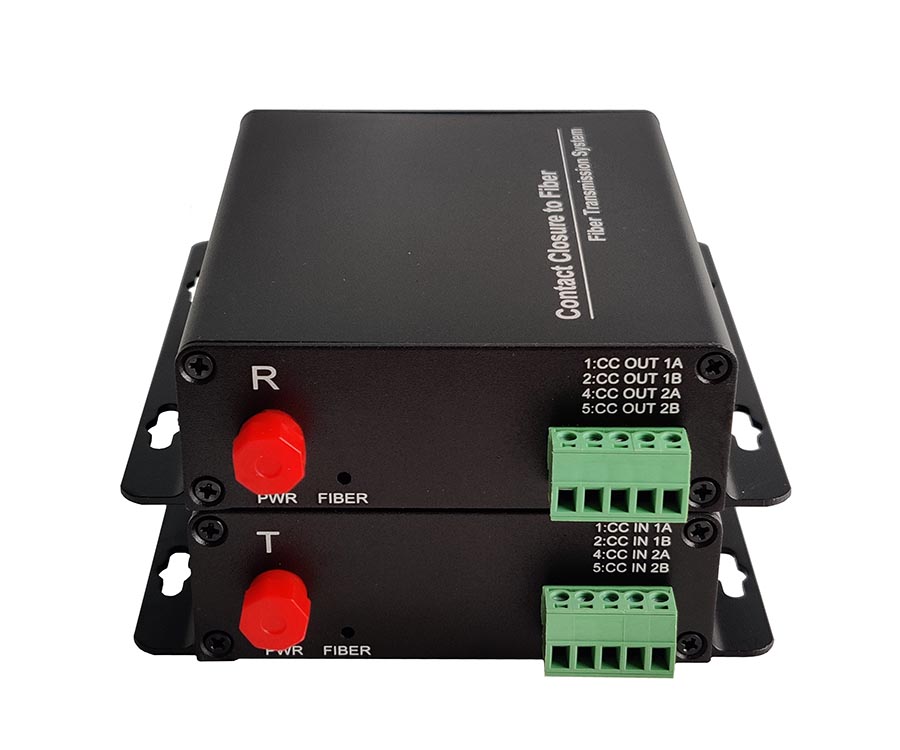

CC0200 contact closure fiber optic converter can transmit 2 positive contact closure through a single fiber or dual fiber, the multi-mode transmission distance can reach 500M, and the single mode transmission distance can reach 20km. The device works in pairs (transceiver and receiver), supports plug-and-play, no setting required, works in a wide operating temperature range (-20°C ~75°C), and has a 3-year warranty.
Features
Support 2 Channels Positive Contact Closure Fiber Optical Converter;
Photoelectric isolation scheme to ensure the reliability, stability and security;
Single fiber, dual fiber (optional) ;
Multi-mode transmission distance 500M, single mode transmission distance 20KM;
The device is open mode by default;
The device does not support wet contact (charged) function by default;
Support for 100M Ethernet (optional);
Support LED status indicator;
Devices are used in pair (Transceiver and Receiver);
Plug and play,no driver;
Wide range of operational temperature (-20°C ~75°C);
Warranty: 3 years;
Specification
Fiber Optical |
Module type | Single fiber (standard) |
Wavelength | 1310nm, 1550nm |
Rate | 155Mbps |
Tx power | ＞-7db |
Rx sensitivity | ＞-24db |
Fiber connector | FC (standard) SC/ST/LC (optional) |
Contact closure |
Level type | Contact closure (2 wire system)/ 1 channel |
Input channels | 2 channel |
Output channels | 2 channel |

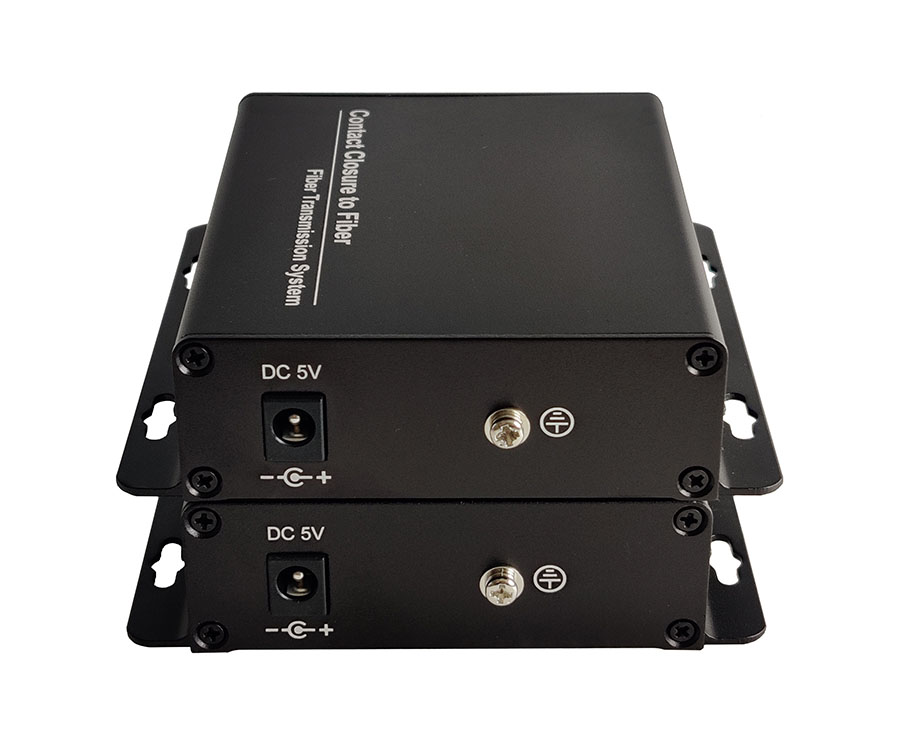

Input power range | 5V |
Input electrical parameters | Dry node, not charged (short or disconnected) |
Output electrical parameters | Dry node, not charged (short or disconnected) |
Open / closed | Always open (standard) |
Physical interface | Industry terminal |
Relay |
Output relay maximum switching voltage | 240VAC/30VDC |
Output relay mechanical durability | 100,000,000 times |
Maximum output power of relay | 100,000,000 times |
Ethernet |
Bandwidth | Self-adapting 10/100M rate |
Protocol | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1d Spanning Tree IEEE802.1q VLAN,IEEE802.1p QoS |
Physical connector | RJ45 |
Other |
The shell metal | Aluminium alloy |
Product size | 104*104*28mm |
Weight | 0.7KG |
Working temperature | -20°C ~75°C |
Storage temperature | -40°C ~85°C |
Relative humidity | From 5 to 95% (non-condensing) |
Warranty | 3 Years |
