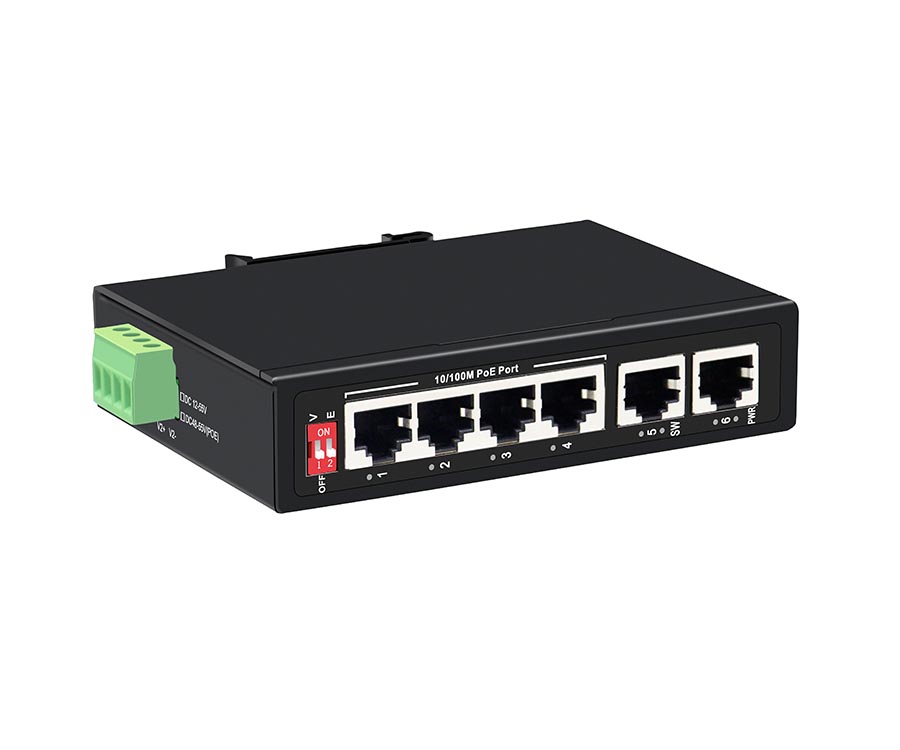

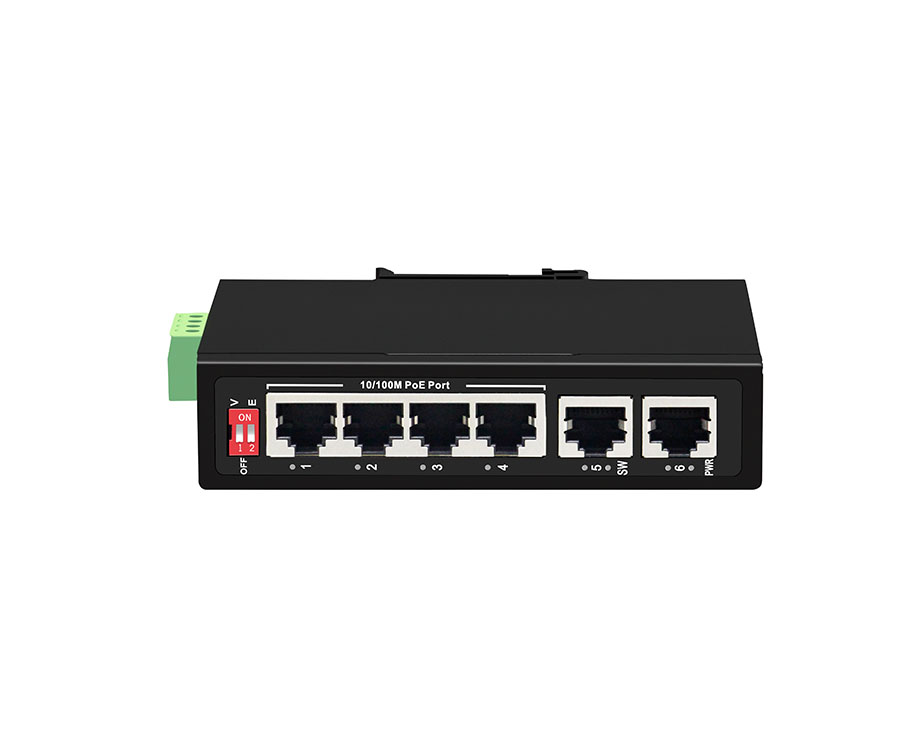

6-port Layer2 Unmanaged Industrial PoE Switches

4-port 10/100M PoE + 2-port 10/100M uplink RJ45

Model：PIES206-4P

Support 4-port 10/100M POE +2-port 10/100M uplink Ethernet;
Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at, store and forward;
Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W);
Support IP40 protection, high strength iron shell;
Support VLAN，Extend，Standard swapping, VLAN+ Extend four modes;
Industrial grade 4 design, -40-75°C working temperature;
Support dual power supply DC48-55V;

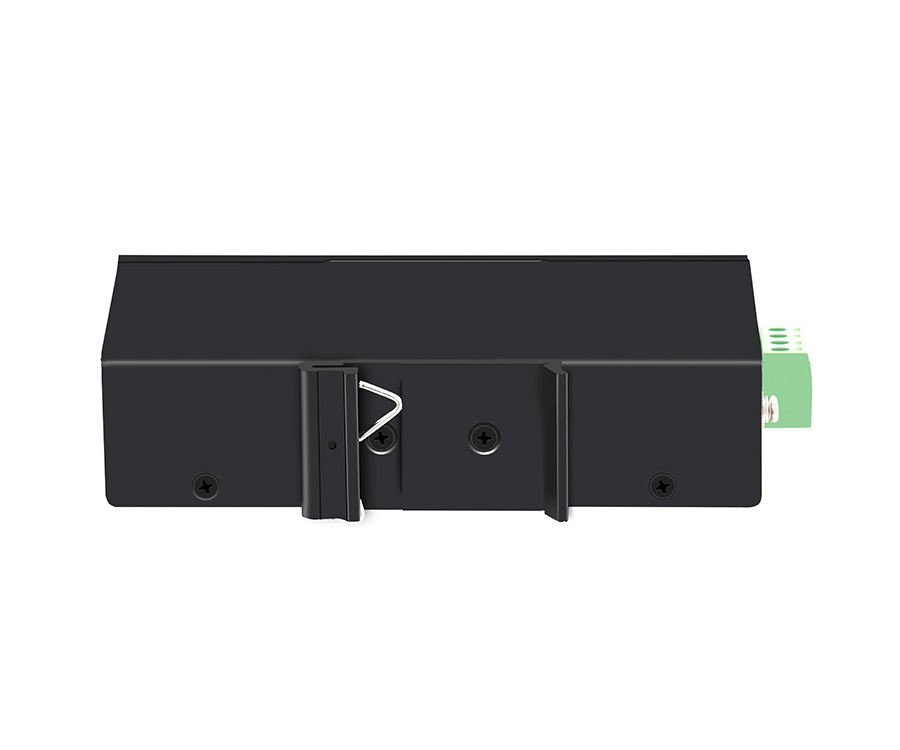

Support DIN-Rail or wall Installation;
Warranty:5years

REQUEST A QUOTE

Overview
Feature
Specification
Ordering Information
Download
Video

Introduction

PIES206-4P Industrial PoE Switch, support 4-port 10/100M POE and 2-port 10/100M Uplink Ethernet, DIN-Rail & Wall mounts installation, support power input (DC48-55V), working temperature -40-75°C, the reliable industrial design can ensure the stability of the system without interruption.

Industrial PoE switch (Power over Ethernet) is a network device that transmits electrical power through the same cable that carries data. When connecting network devices such as IP cameras, VoIP phones, and wireless access points, the switch will detect whether they are compatible with PoE and automatically enables PoE power transmission to these endpoints.

Each component of the Industrial PoE switch is designed and rigorously tested to handle extremely harsh environments subject to a wide range of operating temperature, vibration and shock, and protection from ESD (Electrostatic discharge), EMI (Electromagnetic Interference) and electrical surge.

PIES206-4P PoE switches support IEEE802.3af(15.4W),802.3at PoE+(30W), save installation and maintenance costs by reducing the need for external power supply, additional wires, power outlet.

This series of industrial POE switches can be widely used in Intelligent Transportation System, Electric Power, Industrial Automation, power SCADA, Rail Transportation, Security Surveillance, Military and other industries, is a low power consumption Industrial Network Switch.

Specification
Product Name	6 ports 10M/100M Industrial intelligence standard POE Switch
Port Definition	410/100M POE ports +2 10/100M Uplink Ethernet port
Network Protocols	IEEE802.3, IEEE802.3i, IEEE802.3u
PoE Parameters	POE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)
	Each port Max：15.4 W (IEEE 802.3af) Each port Max：30 W (IEEE 802.3at)
	PoE Compatibility：IEEE 802.3af/at adaptive
	POE Power Output: DC 52V
	POE power supply core：1/2+ ; 3/6-
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 m)
	10BASE-T：Cat6 or more UTP(≤250 m)
	100BASE-TX: Cat5 or more UTP(≤100 m)
Hardware parameter
Bandwidth	1.6Gbps
Cache	512K
Chipset	RTL8309NI
Package Forwarding Rate	0.8928Mpps
MAC address	2K
Forwarding mode	Store-and-forward
DIP switch
1,2 both off	Standard mode：1-6 port shared exchange communication
1 on,2 off	VLAN isolation mode:1-4 ports are isolated from each other and cannot communicate; 5-6 ports are interoperable; 1-4 can only communicate with ports 5 and 6
1 off,2 on	Extend mode：The 4th port is at a 10M rate, and the other ports are at a 1000M rate.1-6 port shared exchange communication
1,2 both on	VLAN+10M mixed model：The 4th port is at a 10M rate, and the other ports are at a 1000M rate.1-4 ports are isolated from each other and cannot communicate; 5-6 ports are interoperable; 1-4 can only communicate with ports 5 and 6.
LED Indicator
PWR (Power supply indicator Red )	Lighting：Powered
	Un-Light：No Power
SW (DIP indicator Green)	1	2	Indicator	Mode
	off	off	No light	Standard swapping
	on	off	Lighting	VLAN
	off	on	Slow flash	Extend
	on	on	Quick flash	VLAN +Extend
1-6(Green)	Lighting：Connecting
	Flashing：Data Transmit
	Un-Light：Disconnect
Power Supply	Power input: DC48～55V
	power supply wiring: 4 PIN terminal block （redundancy V1+V1-,V2+V2-）
Physical structure	Shell protect grade: IP40
	Installation: DIN rail
	N.W:：0.409KG G.W: 0.489KG（without power supply）
	Product Dimension (L×W×H): 119MM87MM28MM
	Package Dimension (L×W×H): 175MM130MM55MM
Working Environment	Operating temperature: -40～75°C
	Storage temperature: -40～85°C
	Humidity: 5%~95 % ( No condensation)
Industry Standard	EMI: FCC Part 15, CISPR (EN55032) class A
	EMS: EN61000-4-2 (ESD)
	EN61000-4-4 (EFT)
	EN61000-4-5 (Surge)
	Shock: IEC 60068-2-27
	Free fall: IEC 60068-2-32
	Vibration: IEC 60068-2-6
Certification	CE mark, commercial
	FCC Part 15 Class B
MTBF	100,000 hours
Warranty	5 years

Select	Model Name	Description
	PIES206-4P	4-port 10/100M PoE + 2-port 10/100M uplink RJ45, DC48-55V, Unmanaged
	PIES206G-GS-4P	4 Gigabit PoE + 1-port Gigabit uplink RJ45 +1 Gigabit SFP, DC48-55V, Unmanaged
	PIES206G-2GS-4P	4 Gigabit PoE Ports + 2 Gigabit SFP Port, DC48-55V,Unmanaged
	PIES106G-2GS-4P	4 Gigabit PoE Ports + 2 Gigabit SFP Port, DC48-55V,Managed
