Introduction

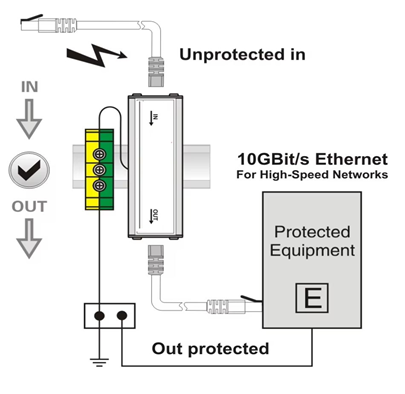

Ethernet Surge Protector MWS-ESP-10GP is installed interface or directly installed in the front near the equipment.Protection of applications in structured cabling according to class EA to 500MHz;e.g. industrial Ethernet, data distributors.diital camera systems, Power over Ethernet (lEEE 802.3) and Ethernet-based interfaces in general.all the industrial ethernet 10M, 100M, 1GBit, 10GBit or higher network surge protection.
Applications
Enterprise Networks: Protects core network equipment in data centers, offices, etc.
Surveillance Systems: Safeguards POE-powered surveillance cameras and wireless access points from electrical disturbances.
Outdoor Installations: Suitable for devices exposed to electrical interference in outdoor or harsh environments.
Industrial Environments: Protects network devices in factories, warehouses, and other industrial settings from surge damage.
For protecting computer data transmission system, network system and so on.
Ideal for protecting Ethernet applications up to 10GBit/s.
Good discharge capacity, low voltage protection level.
Quick response, high transmission speed, low siqnal attenuation.
Metallic enclosure design is use RJ45 connectors, easy for installation.
Optional with DIN rail installation.
10/100/1000/10000Mb(10G) Data Rate.
CAT5.CAT5e.CAT6.CAT6a,CAT7 Compatible.
802.3af,802.3at,802.3bt and Passive PoE Compatible.
PoE.PoE+,PoE++ and 4PPOE Compatible.
